93. Drive Belt Tensioner Installation

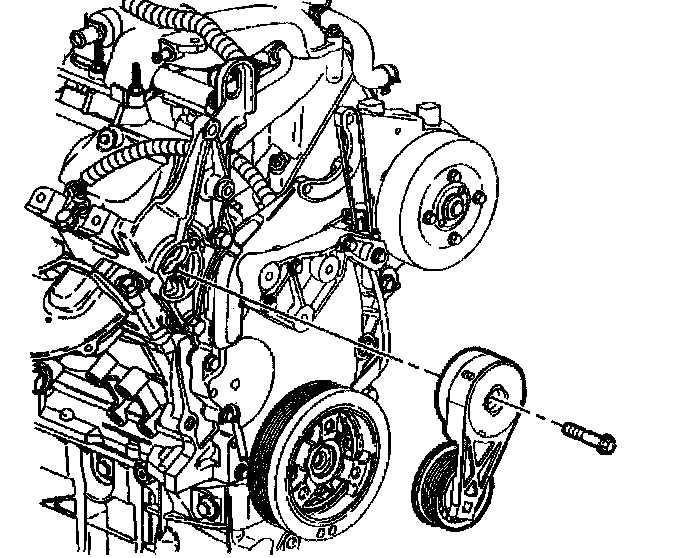

Drive Belt Tensioner Installation (B Van, N Car, U Van)





1. Install the drive belt tensioner.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt tensioner bolt.
- Tighten the drive belt tensioner bolt to 50 Nm (37 ft. lbs.).
