90. Generator and Engine Lift Front Bracket Installation

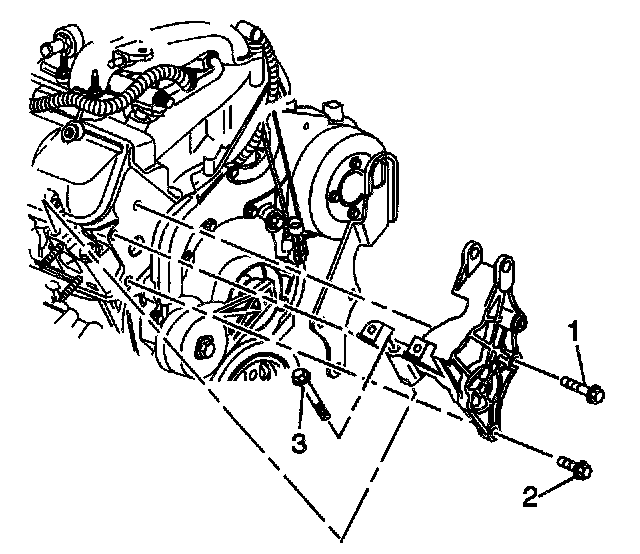

Engine Lift Bracket and Generator Bracket Installation (B Van, U Van)





1. Install the front engine lift hook.
2. Install the generator bracket.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the generator bracket bolts.
- Tighten the generator bracket bolts in sequence (1, 2, 3) to 50 Nm (37 ft. lbs.).
