19. Valve Lifter Removal

Valve Lifter Removal

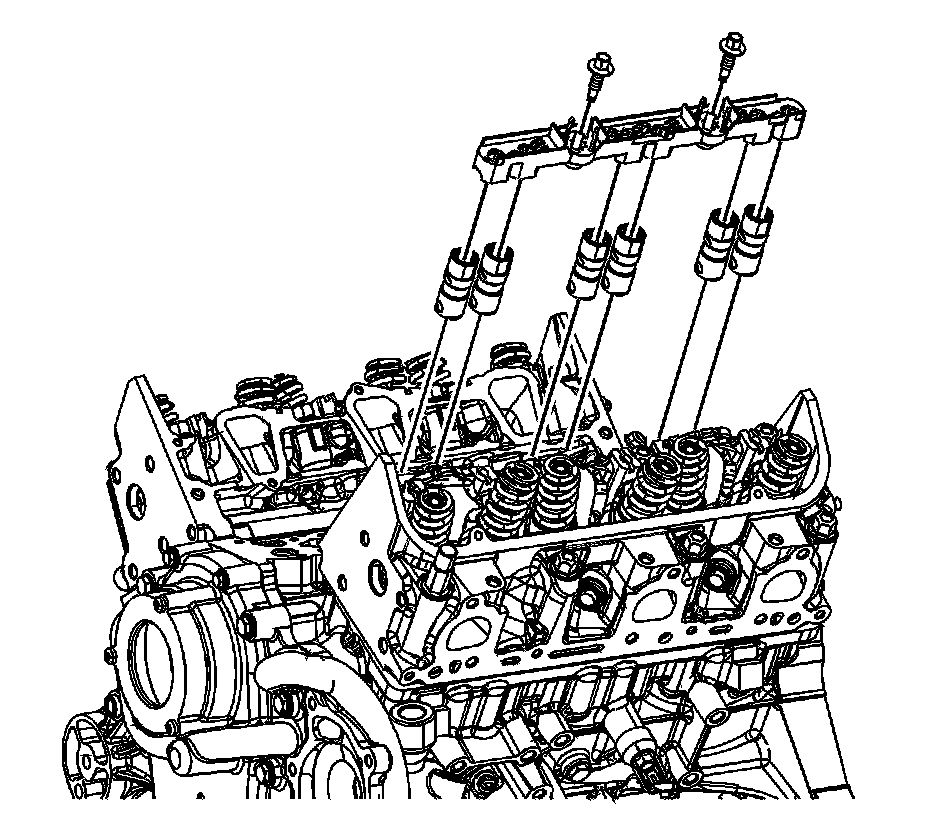

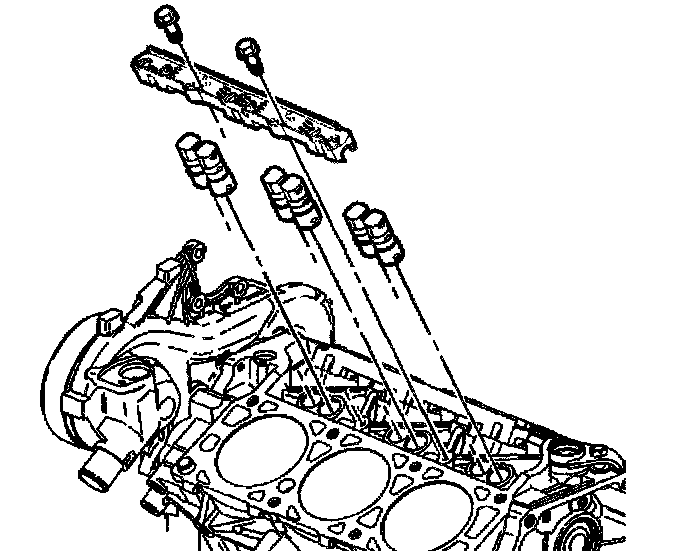

1. Remove the valve lifter guide bolts.
2. Remove the valve lifter guides.

Important: Once removed, place the valve lifters in an organized order so the valve lifters can be installed into the original locations.

3. Remove the valve lifters.
