16. Exhaust Manifold Removal - Right

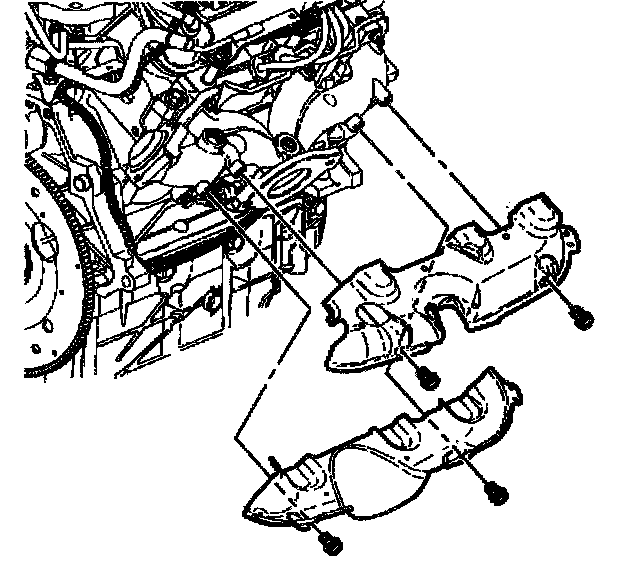

Exhaust Manifold Removal - Right





1. Remove the heated oxygen sensor.





2. Remove the exhaust manifold heat shield bolts.

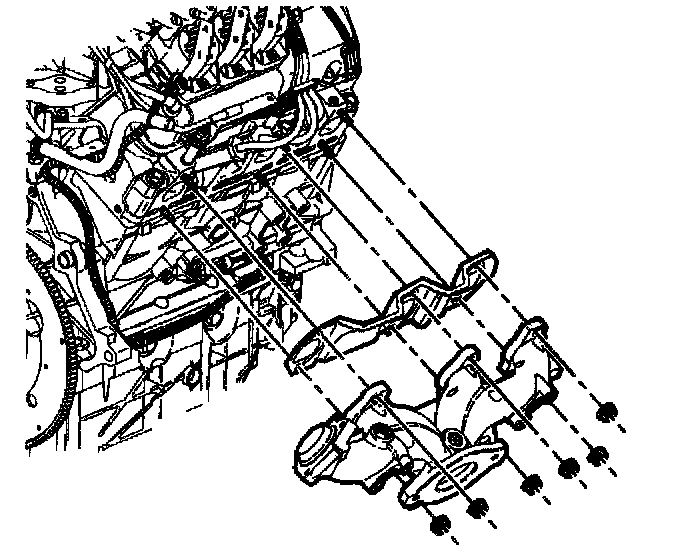

3. Remove the exhaust manifold heat shields.
4. Remove the right side spark plugs.





5. Remove the exhaust manifold nuts.
6. Remove the exhaust manifold.
7. Remove the exhaust manifold gasket.
