15. Exhaust Manifold Removal - Left

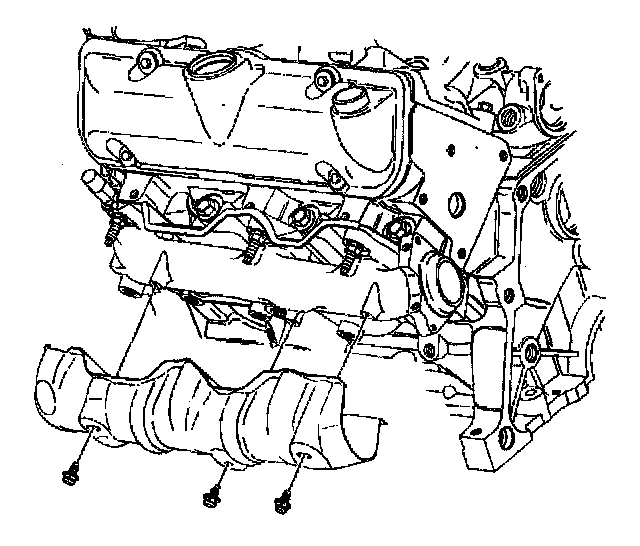

Exhaust Manifold Removal - Left





1. Remove the exhaust manifold heat shield bolts.
2. Remove the exhaust manifold heat shield.
3. Remove the left side spark plugs.





4. Remove the exhaust manifold nuts.
5. Remove the exhaust manifold.
6. Remove the exhaust manifold gasket.
