Idler Pulley: Service and Repair

Drive Belt Idler Pulley Replacement - Upper

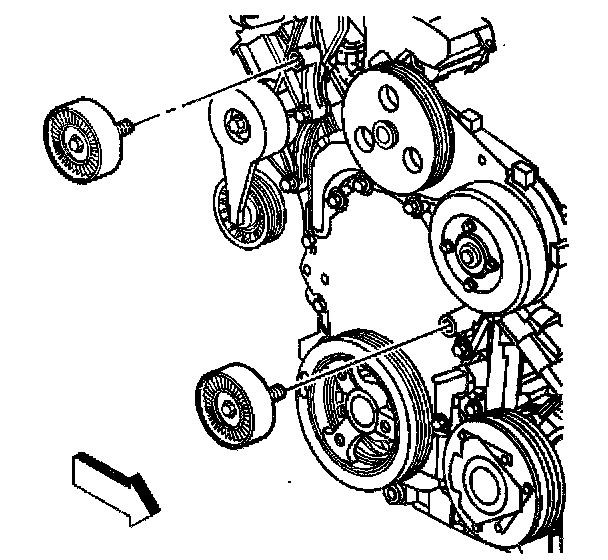

Removal Procedure





1. Remove the drive belt.
2. Remove the drive belt idler pulley bolt.
3. Remove the drive belt idler pulley.

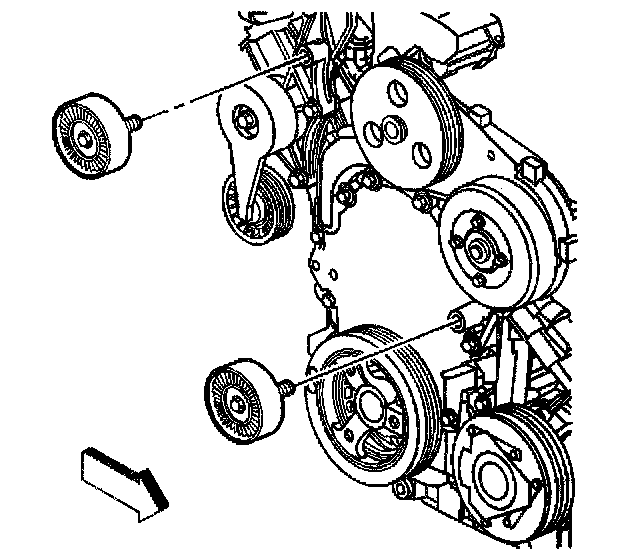

Installation Procedure





1. Install the drive belt idler pulley.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt idler pulley bolt.
^ Tighten the drive belt idler pulley bolt to 50 Nm (37 ft. lbs.).
3. Install the drive belt.
