Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Diagrams

Engine: Diagrams

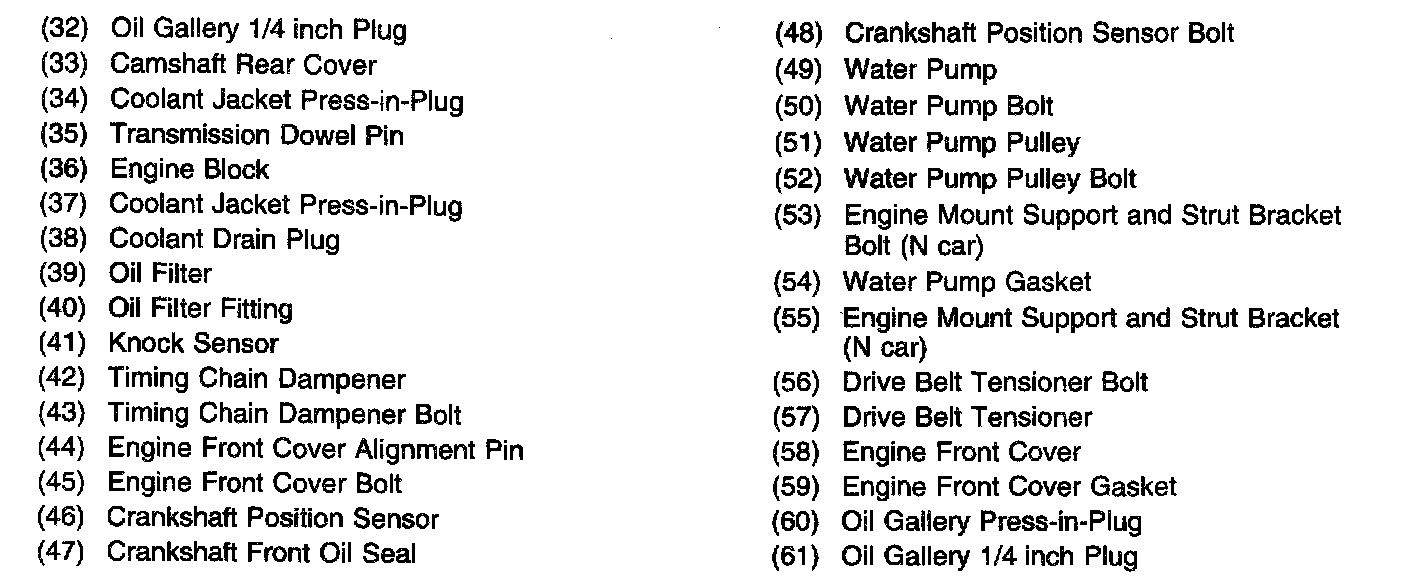

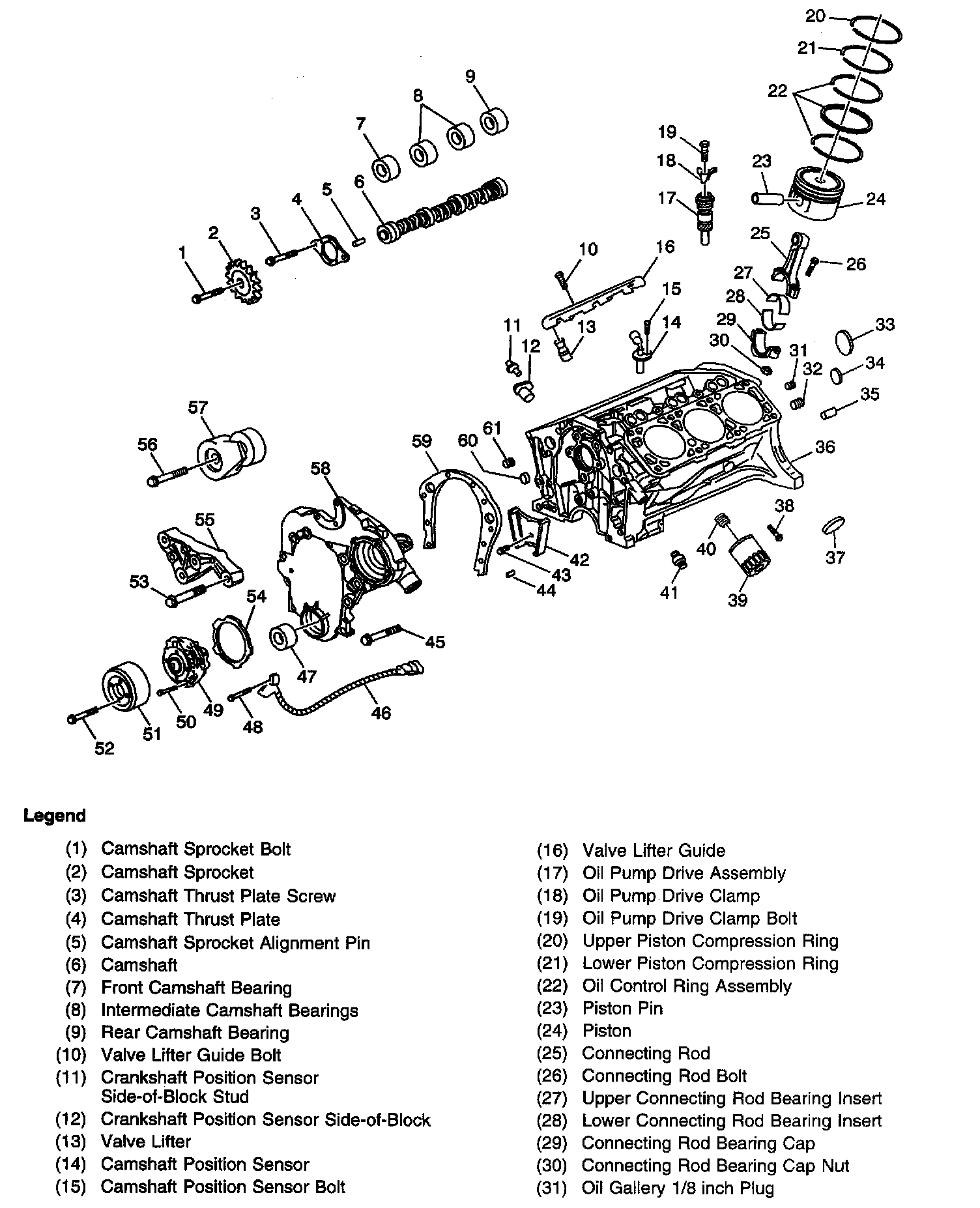

Engine Block and Components

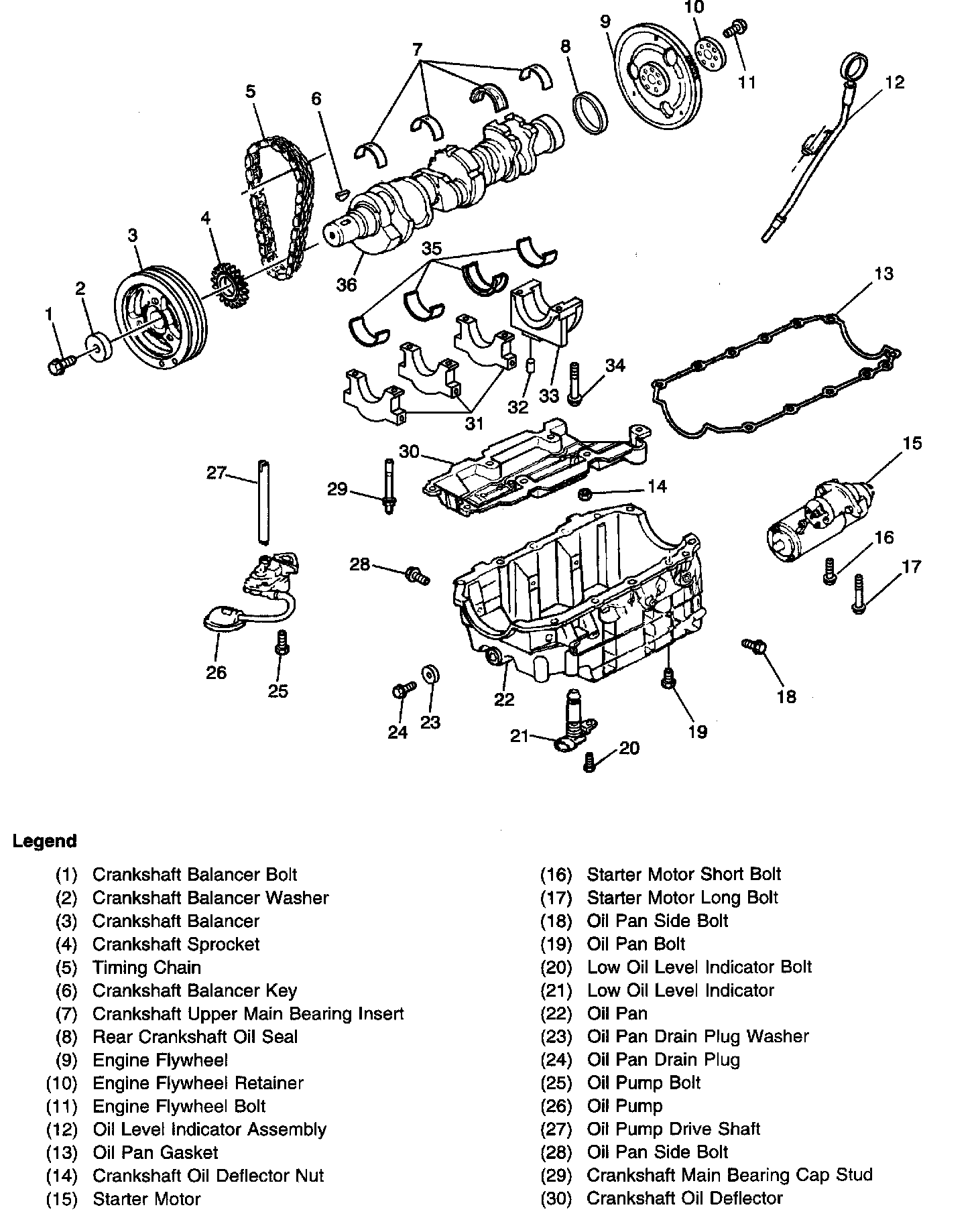

Crankshaft and Components
