Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Axle Shaft Assembly >> Wheel Drive Shafts Disassembled Views (AWD)

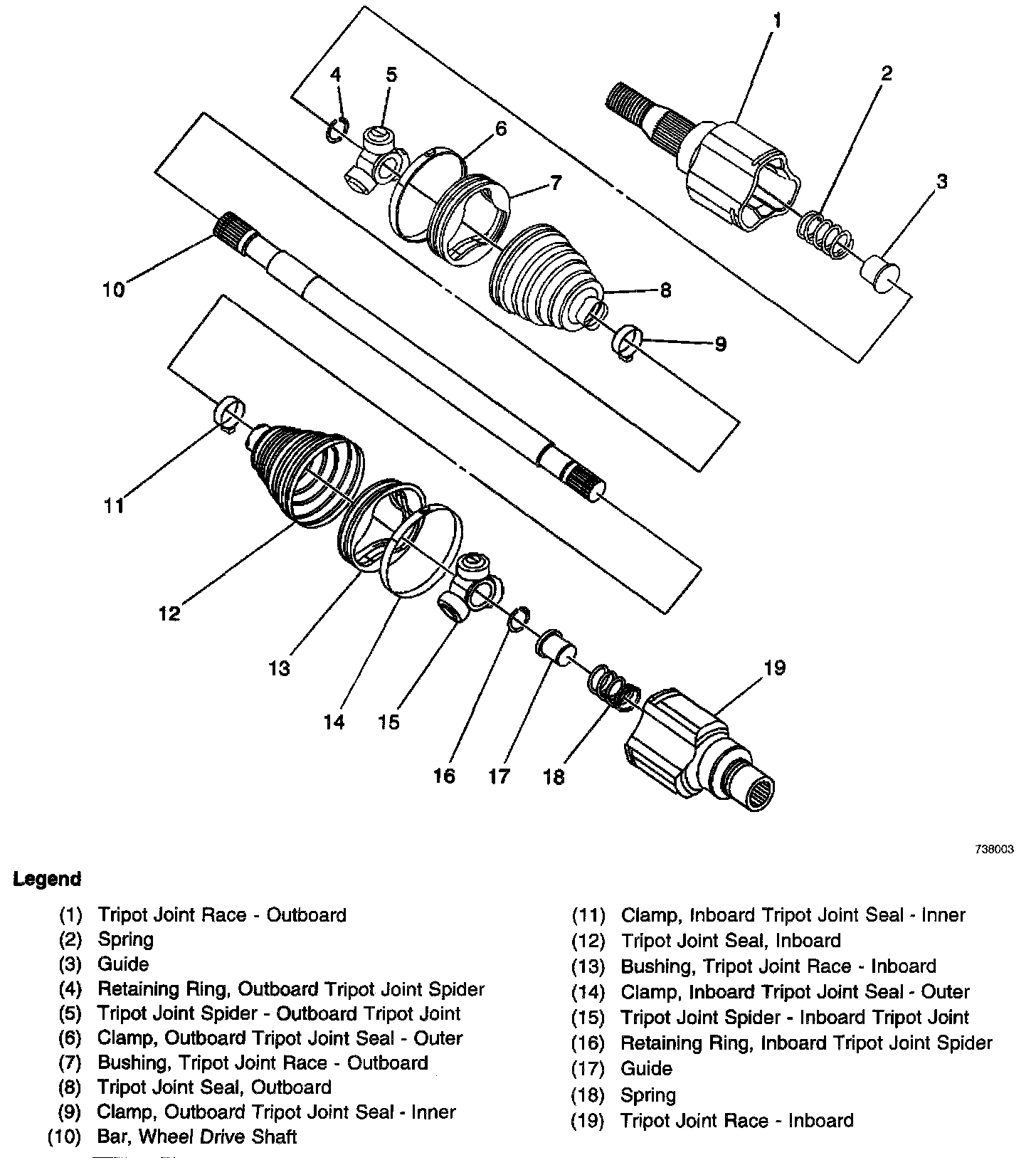

Wheel Drive Shafts Disassembled Views (AWD)
