Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Fluid Passages >> Case Fluid Passages (Case Cover Side)

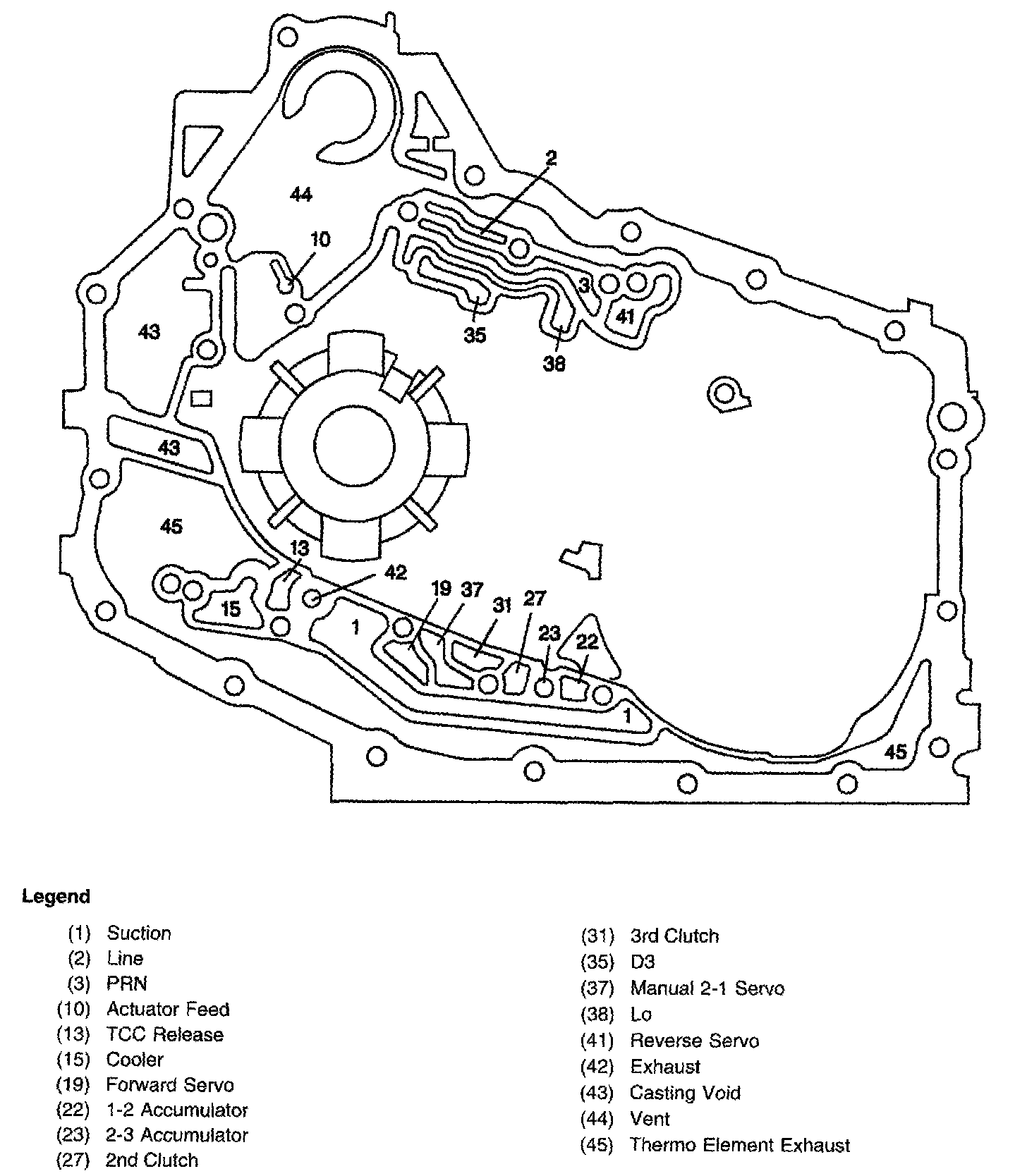

Case Fluid Passages (Case Cover Side)
