Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Fluid Passages >> Case Cover Fluid Passages (Case Side)

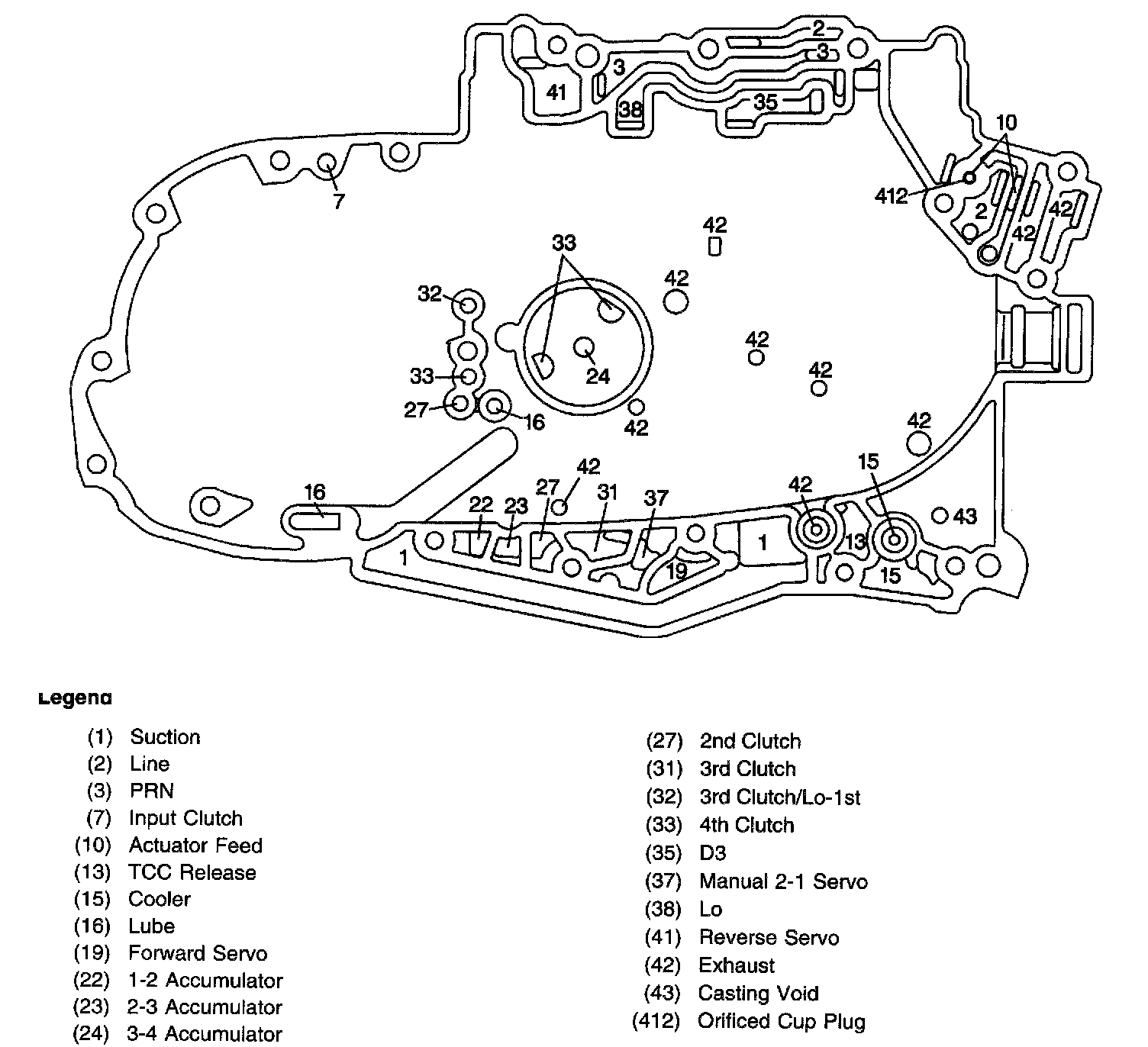

Case Cover Fluid Passages (Case Side)
