LEMON Manuals: Even more car manuals for everyone
Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Case and Associated Parts

Case and Associated Parts

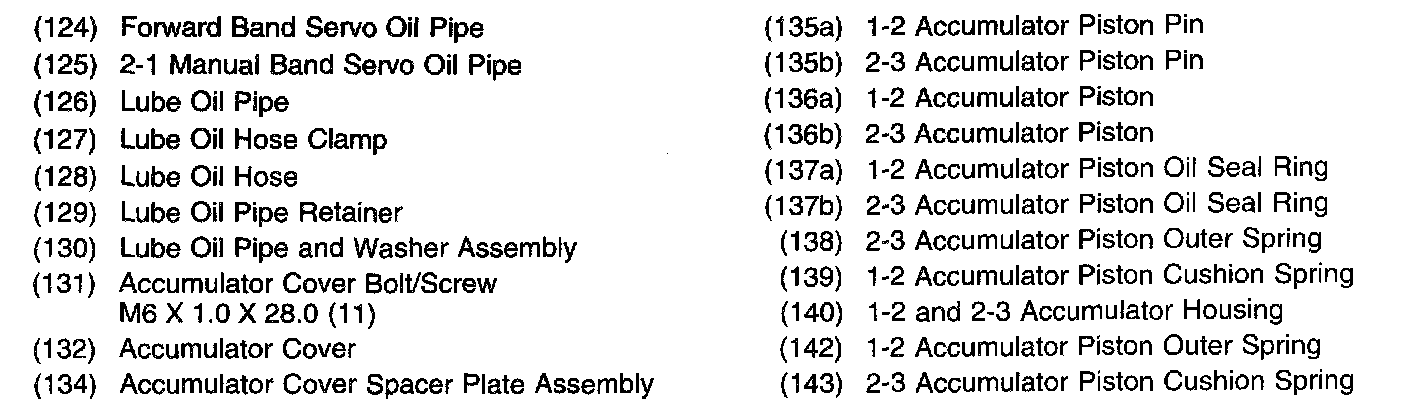

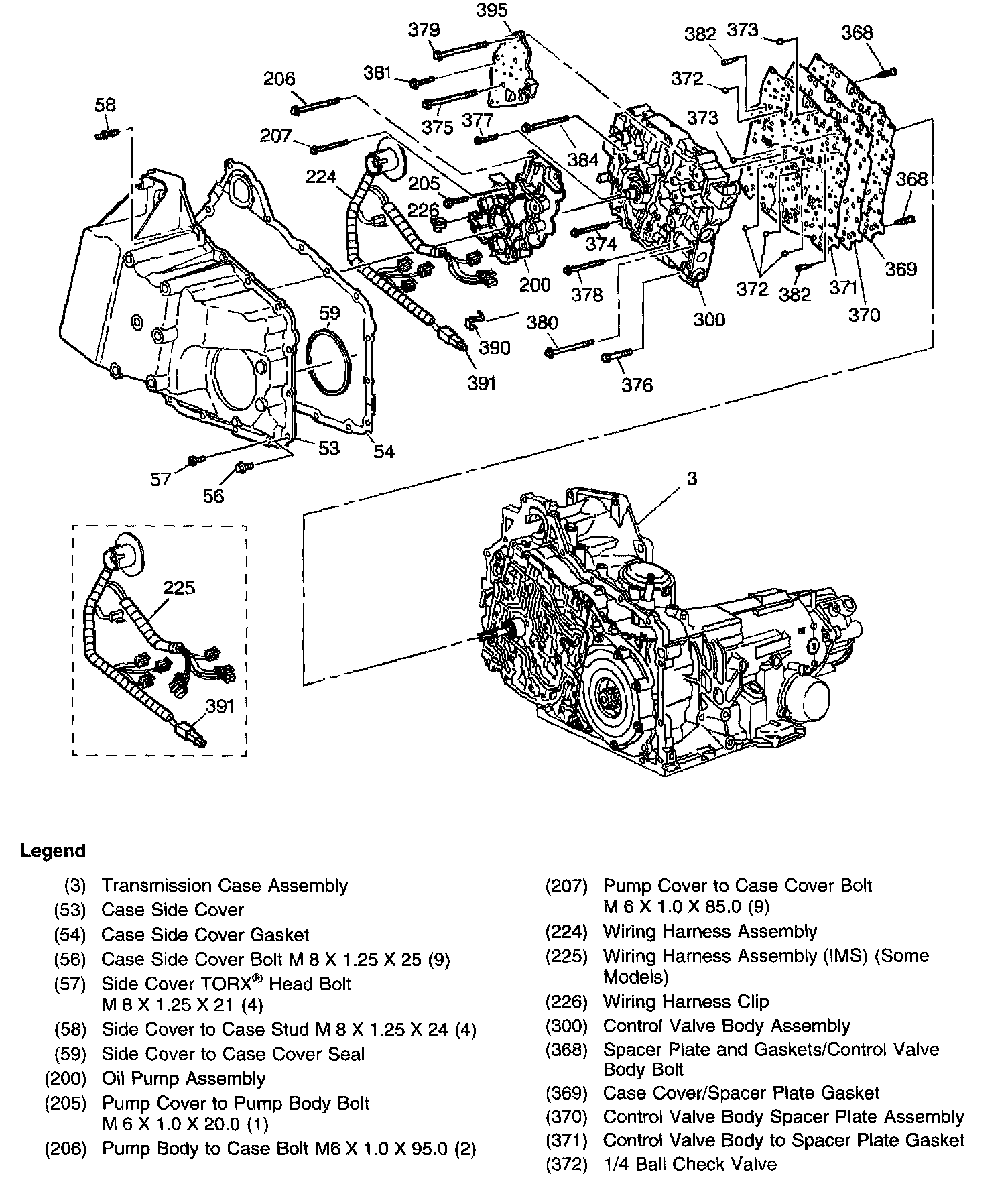

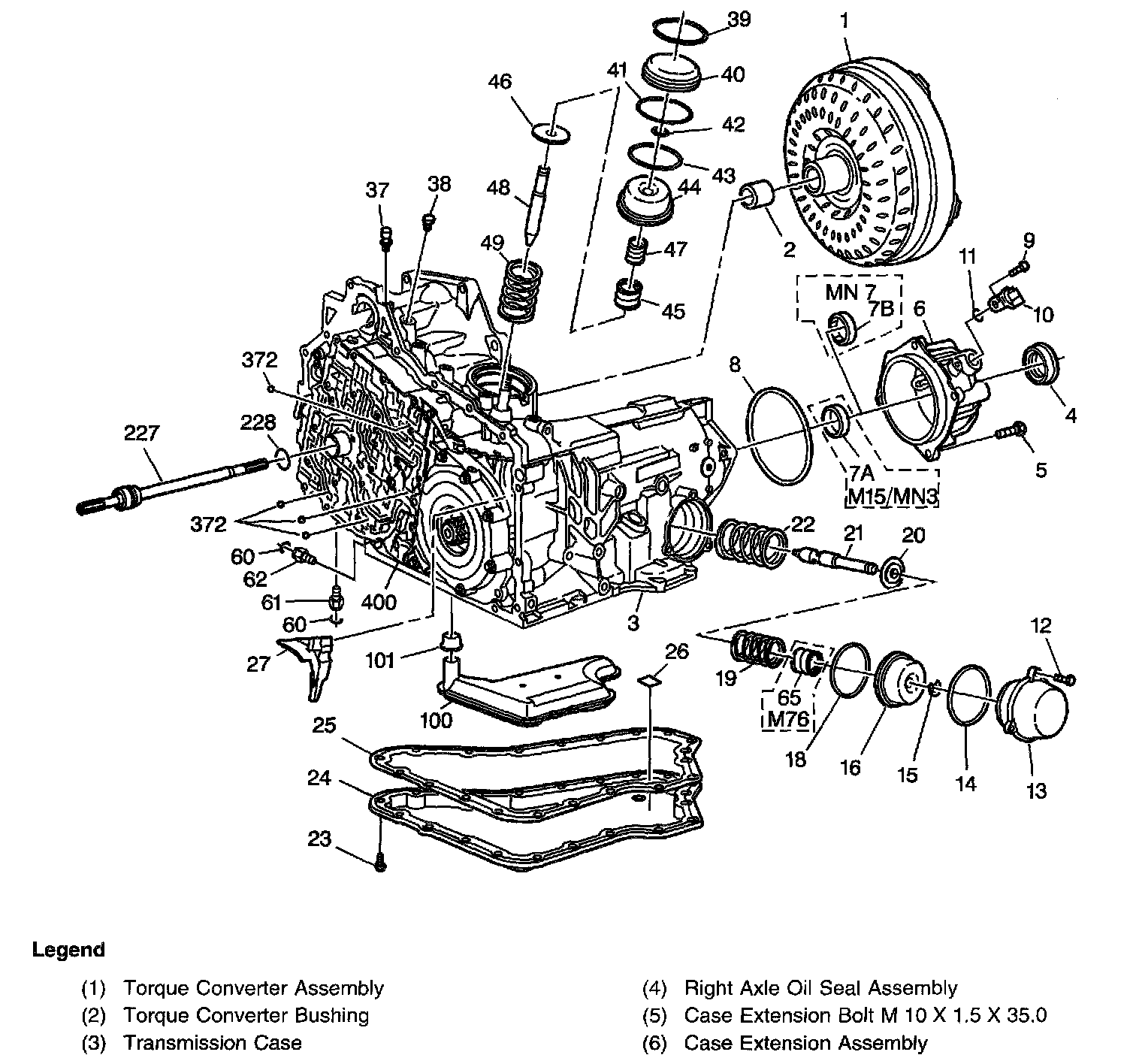

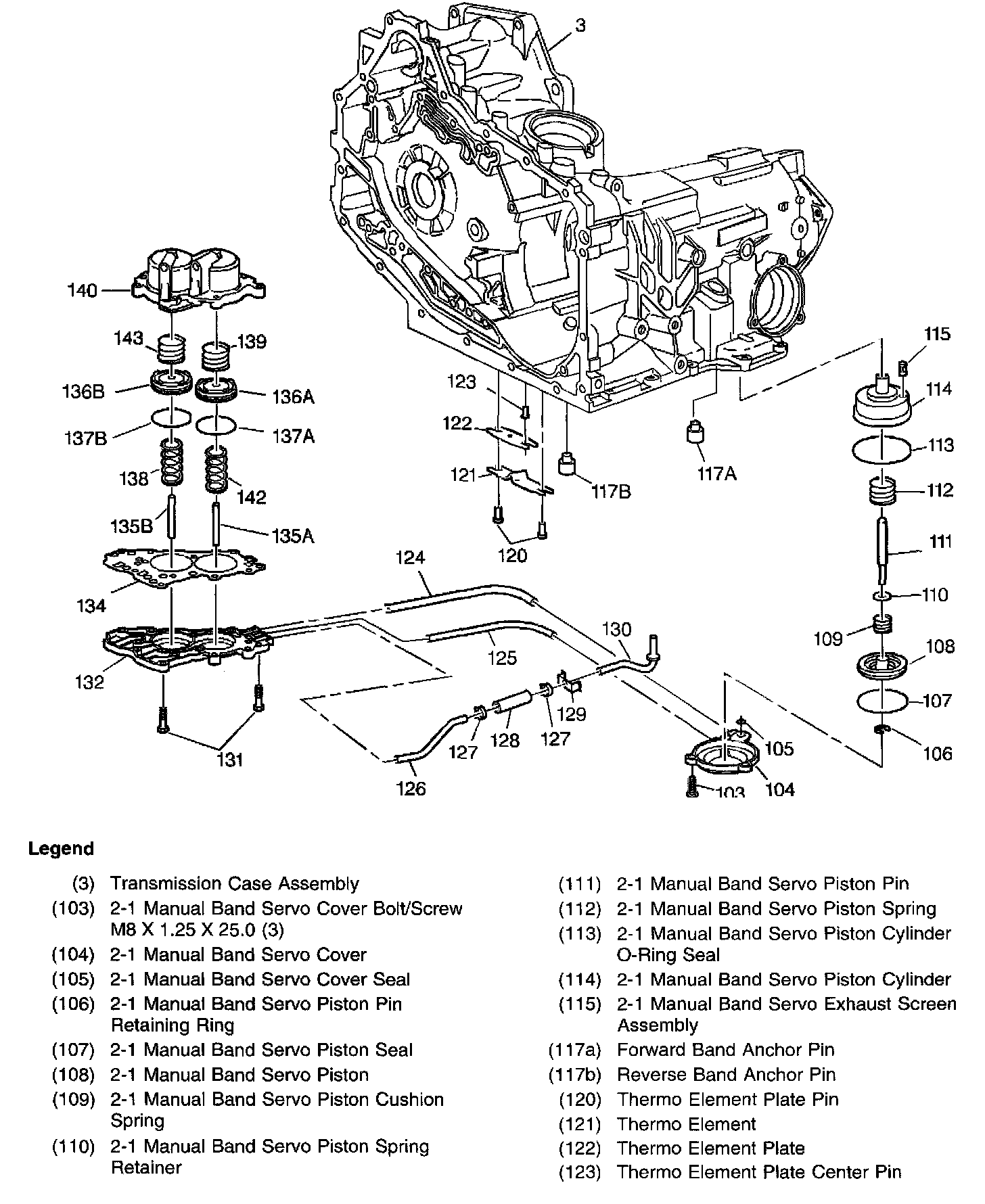

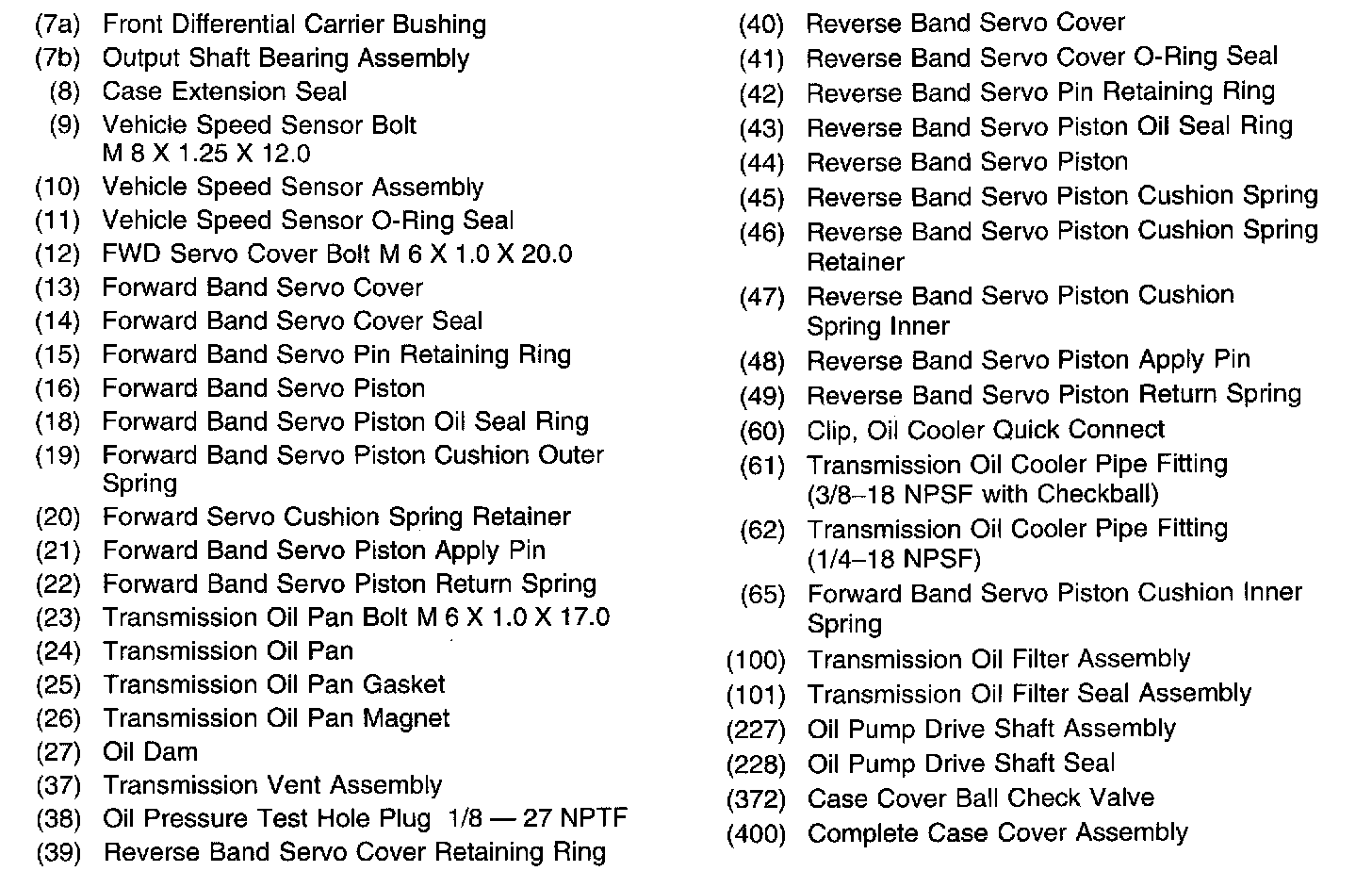

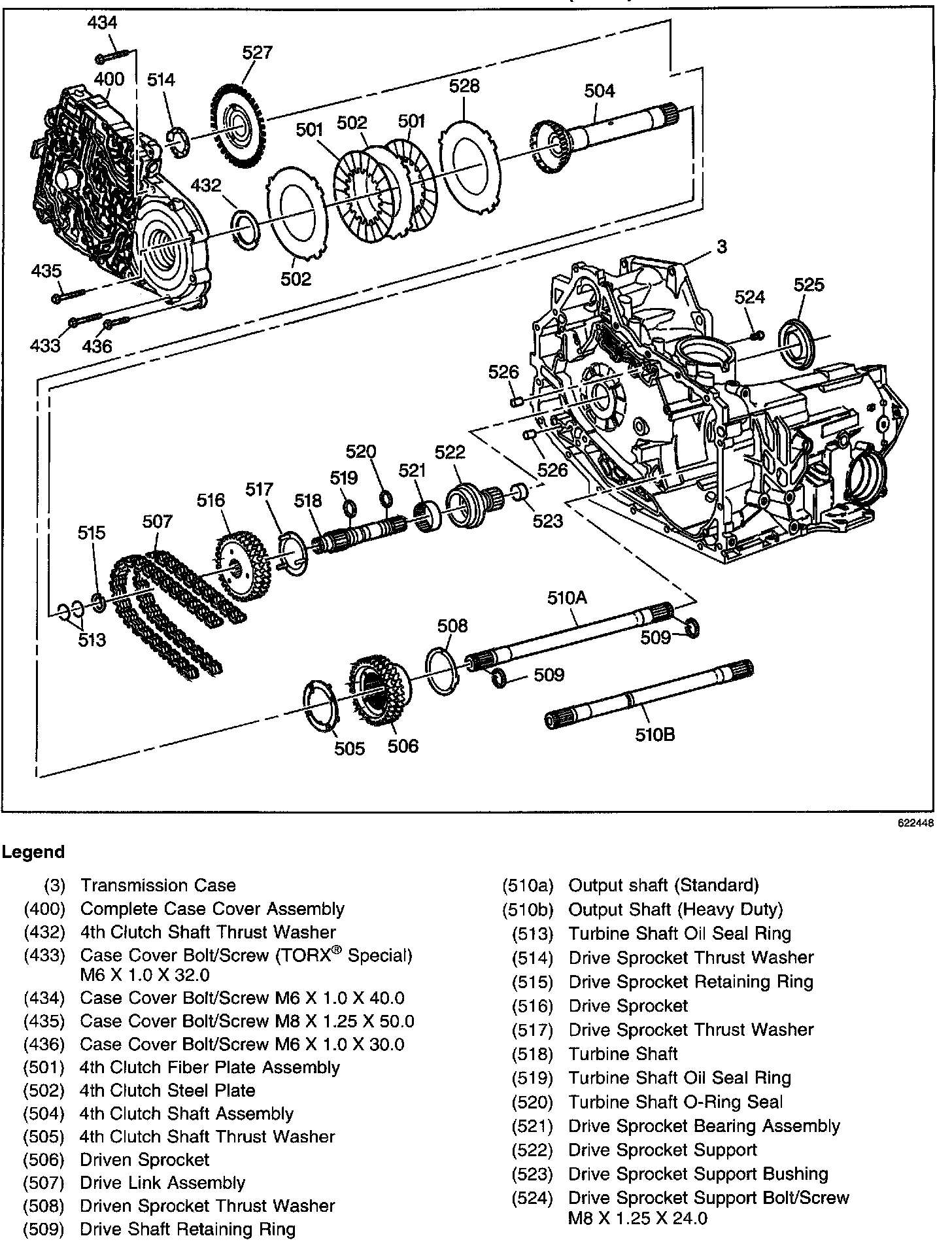

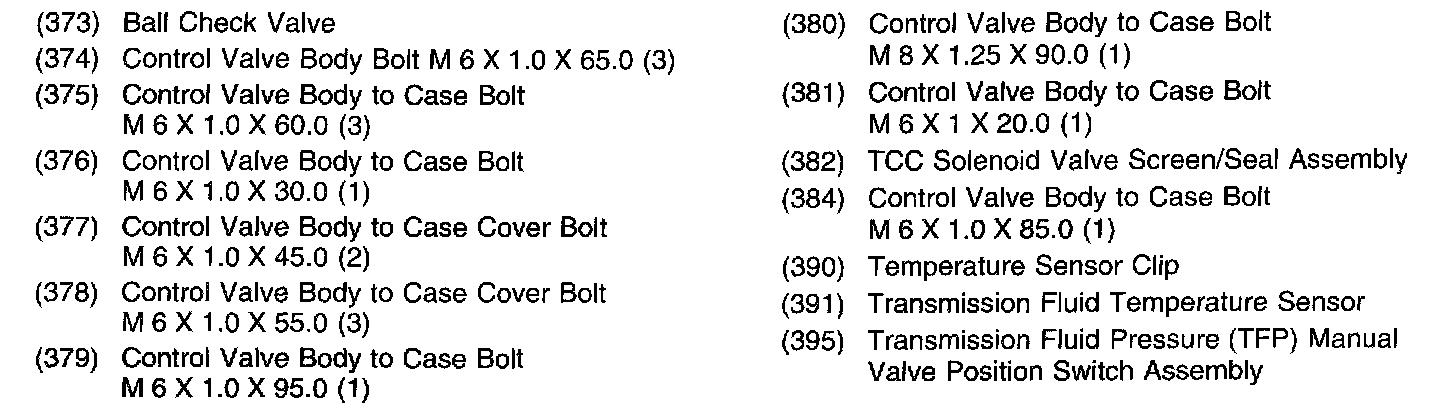

Part (1 of 4)








Part (2 of 4)








Part (3 of 4)








Part (4 of 4)

Case and Associated Parts
