Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trunk / Liftgate

Trunk / Liftgate

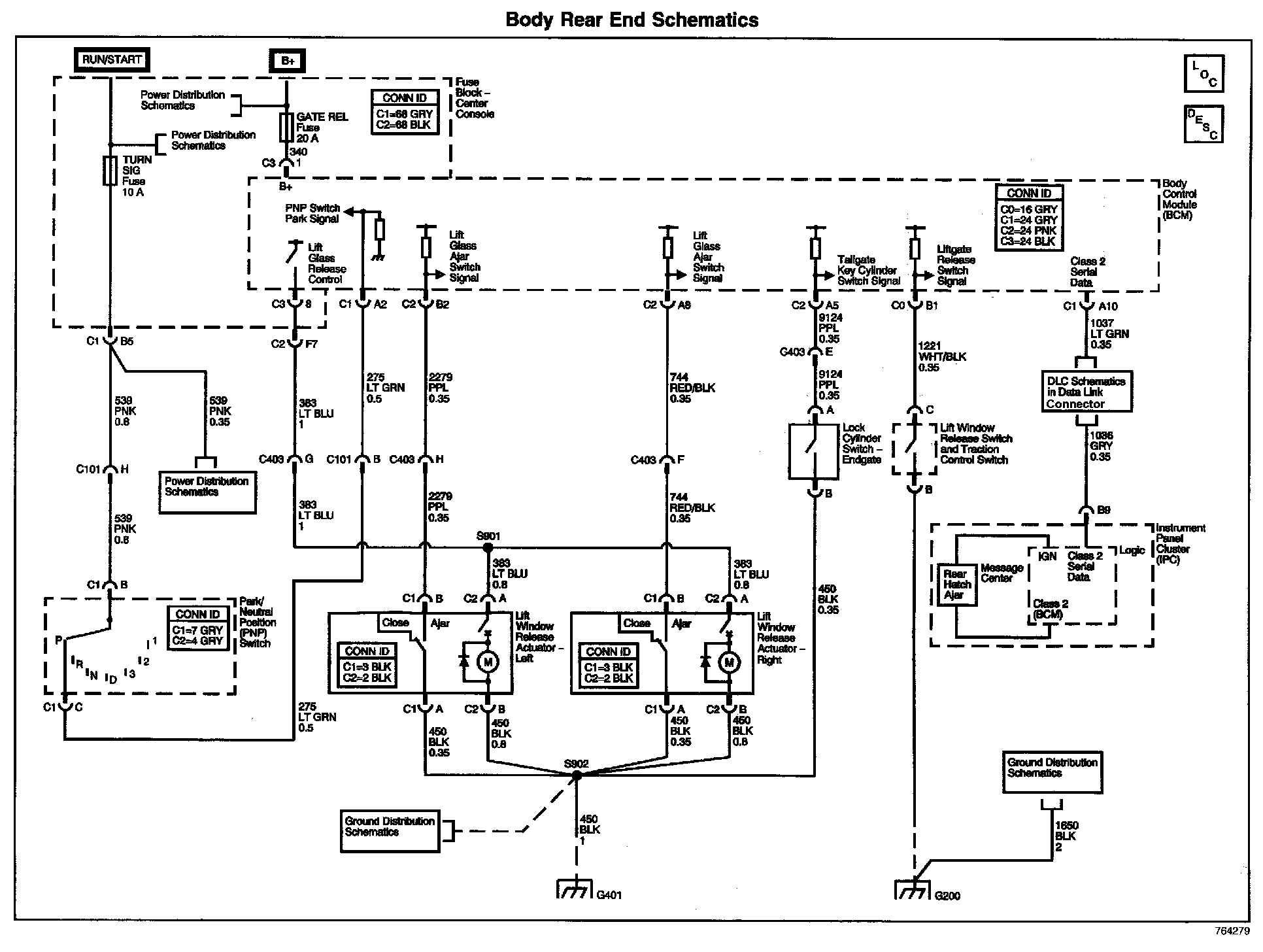

Body Rear End Schematics:
