Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Sunroof / Moonroof >> Sunroof / Moonroof Module

Sunroof / Moonroof Module

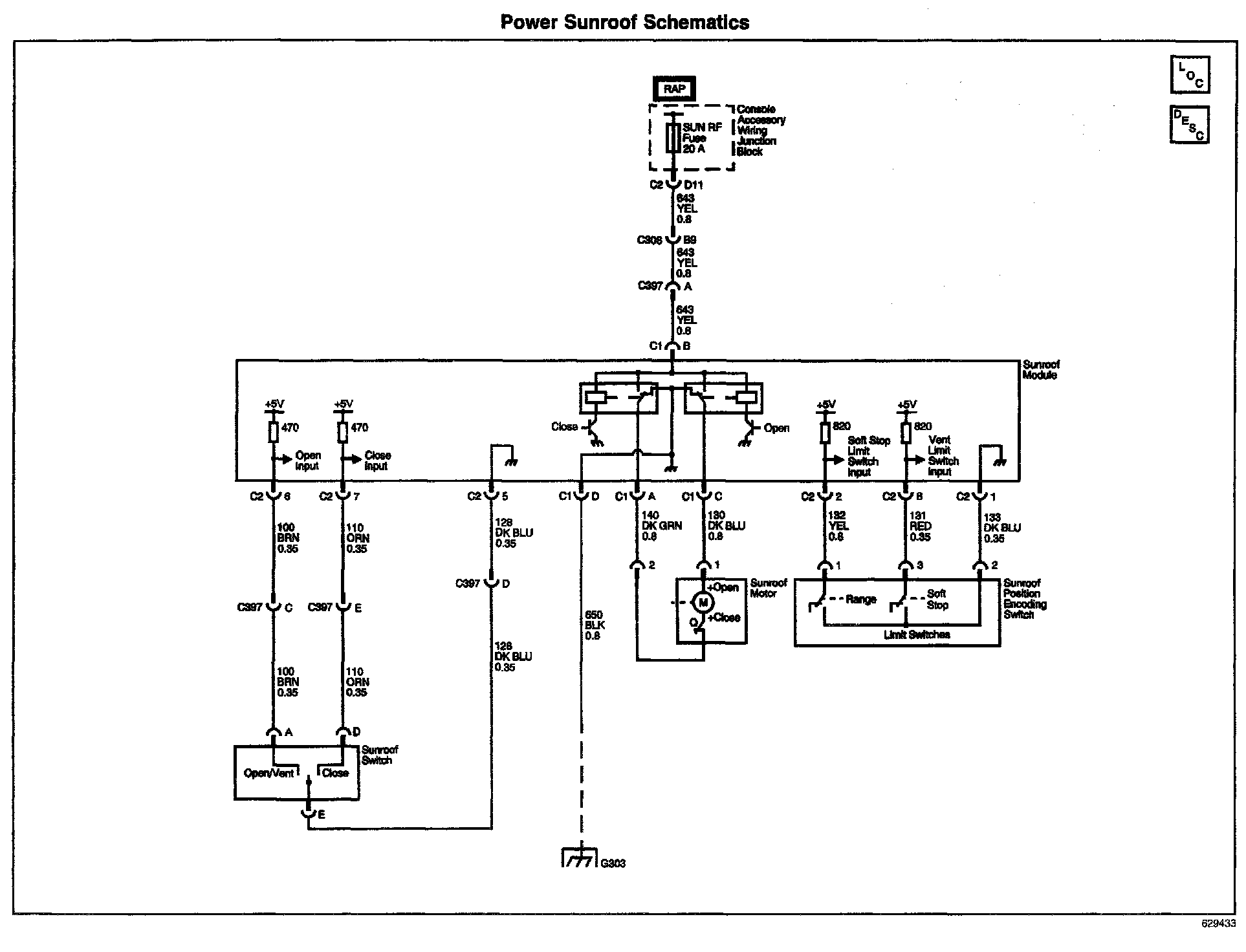

Power Sunroof Schematics:
