Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Theft, Keyless, HVAC, I/P, Horn and Brakes References

Theft, Keyless, HVAC, I/P, Horn and Brakes References

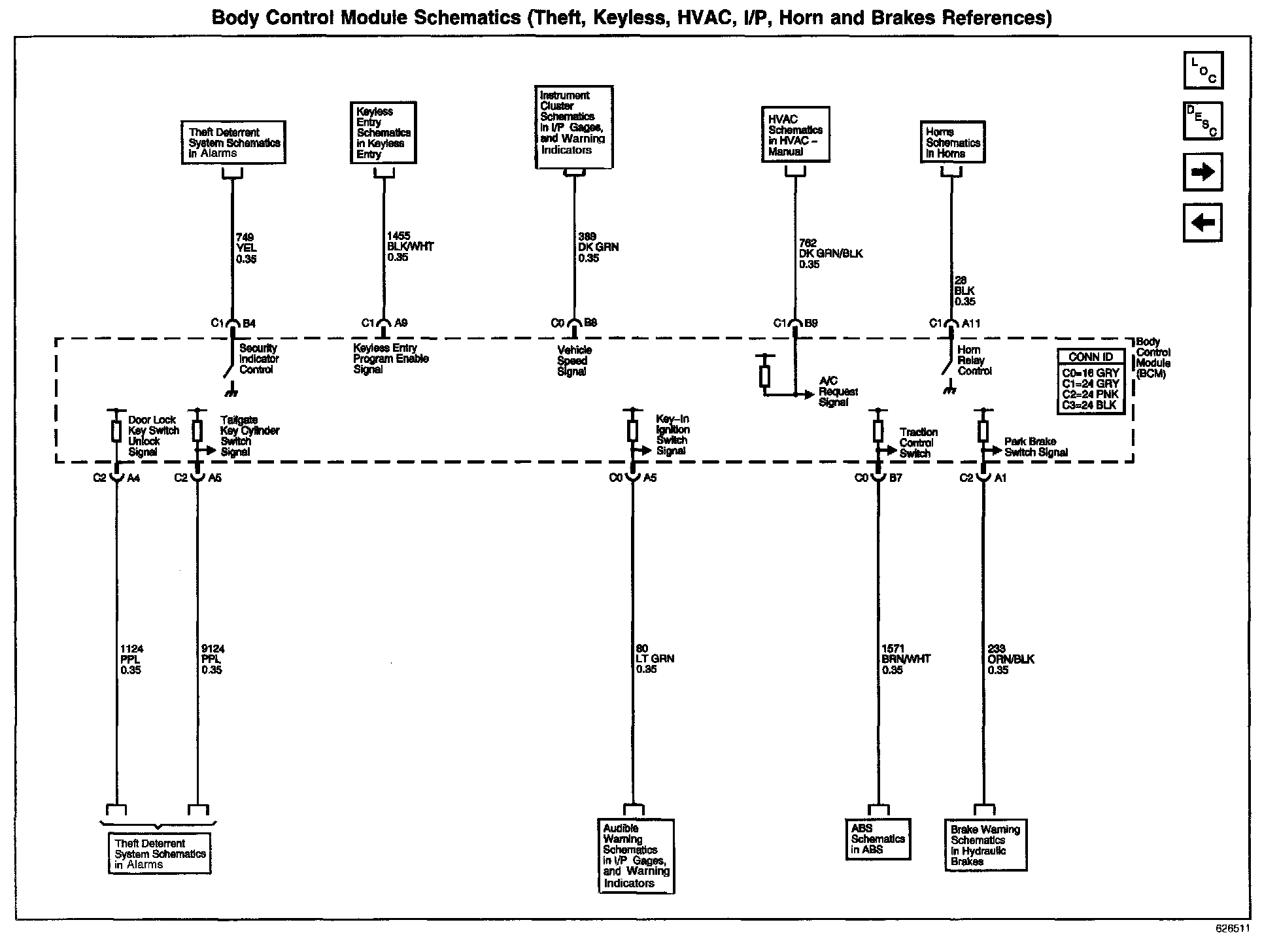

Body Control Module Schematics: Theft, Keyless, HVAC, I/P, Horn And Brakes References:
