Headlamp Switch and Light Sensor

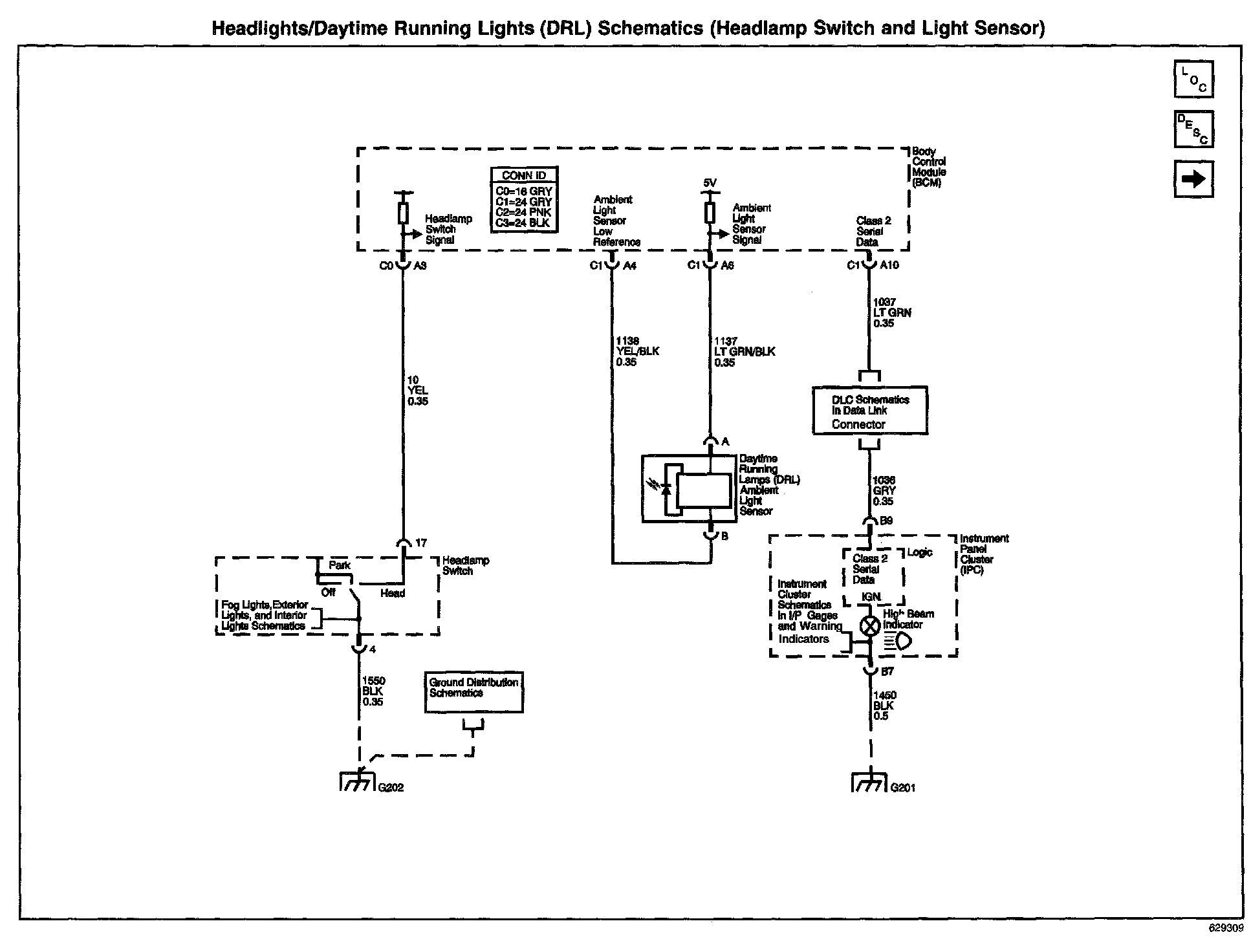

Headlights/Daytime Running Lights (DRL) Schematics: Headlamp Switch And Light Sensor:
