Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lights >> Turn Signal/Hazzard Control

Turn Signal/Hazzard Control

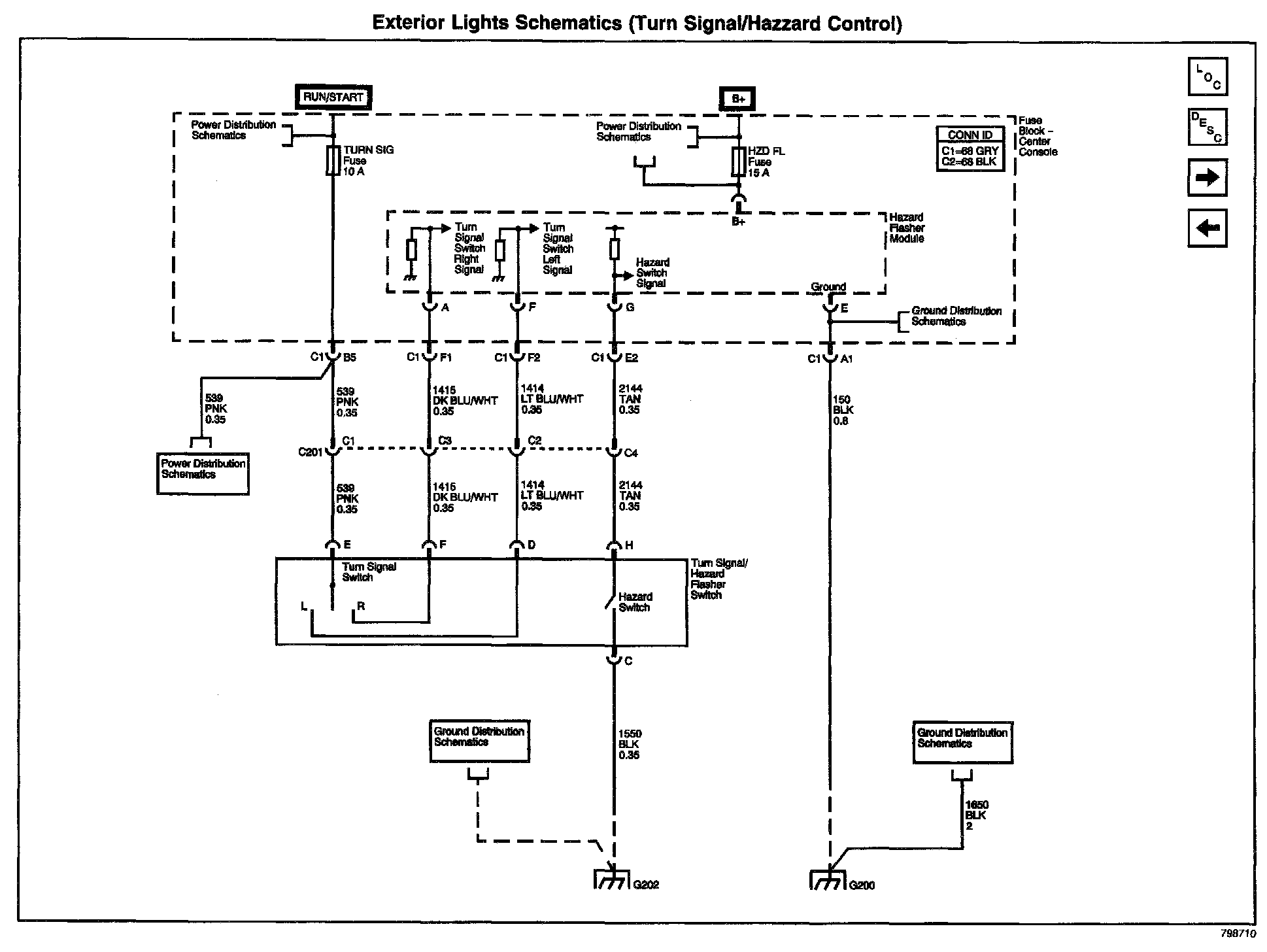

Exterior Lights Schematics: Turn Signal/Hazard Control:
