Power, Ground and Air Delivery Controls

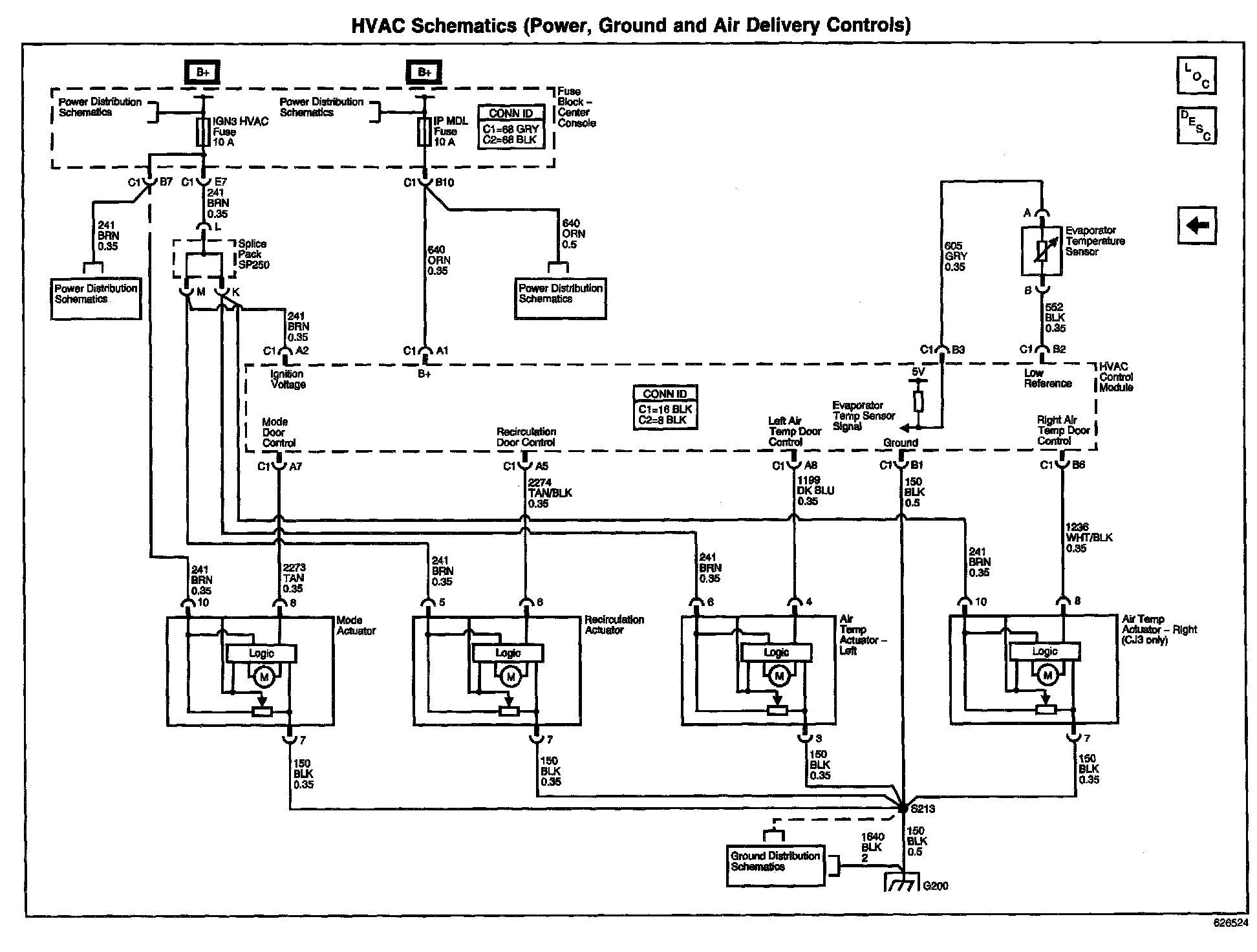

HVAC Schematics: Power, Ground And Air Delivery Controls:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
