Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> System Diagram

System Diagram

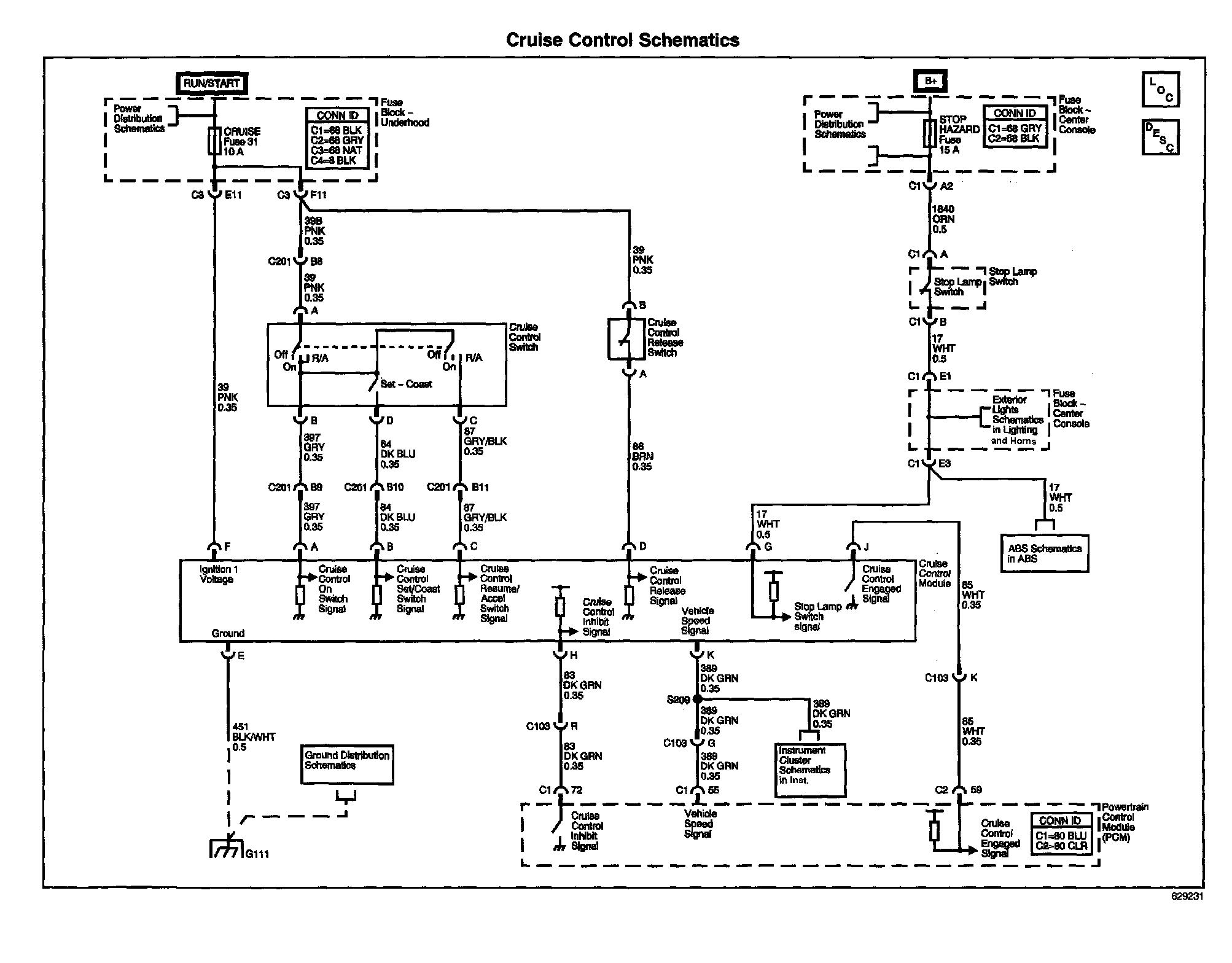

Cruise Control Schematics:
