Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Power, Ground, and BPMV

Power, Ground, and BPMV

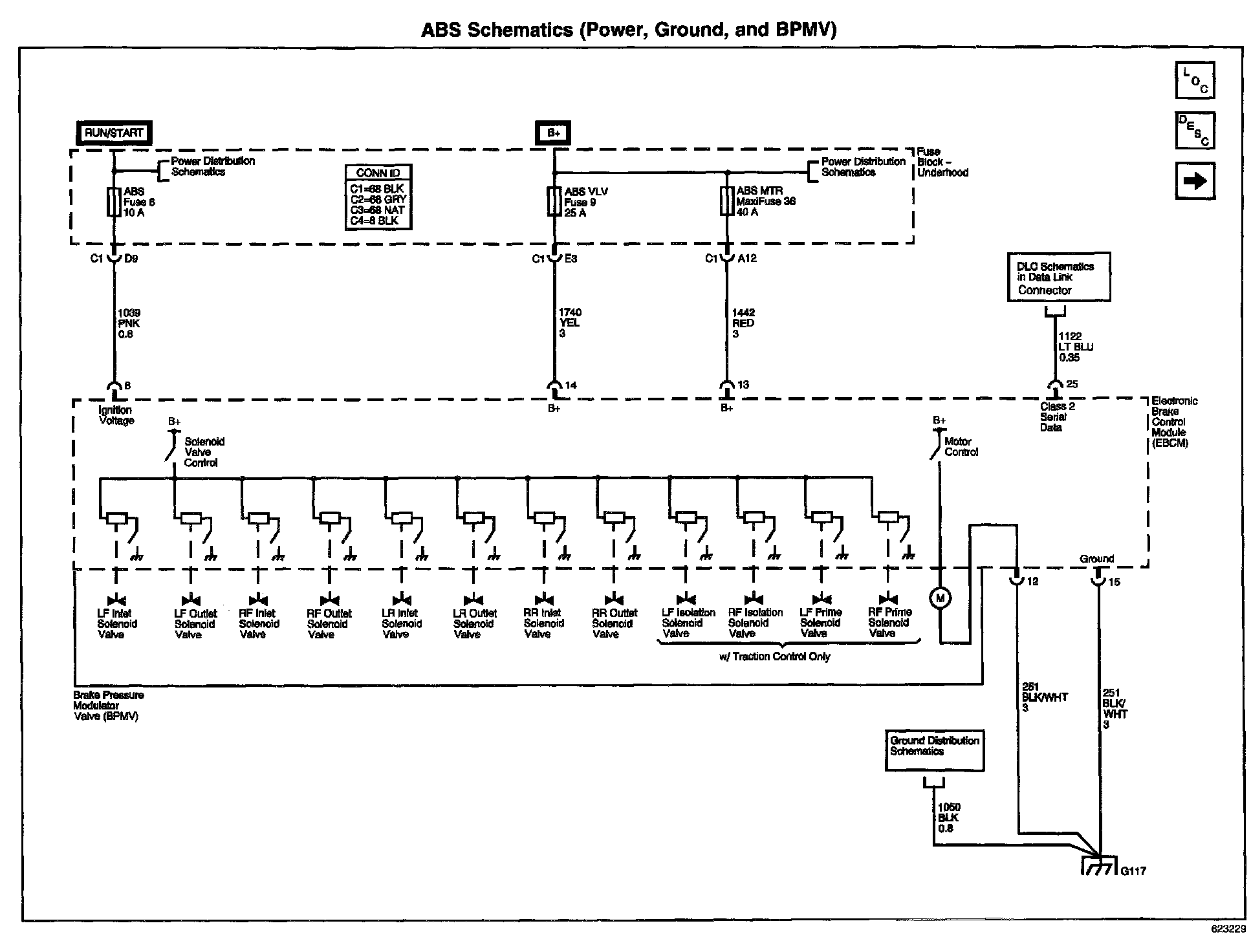

ABS Schematics: Power, Ground, And BPMV:
