Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Actuator >> Endgate Lock Actuator - Right

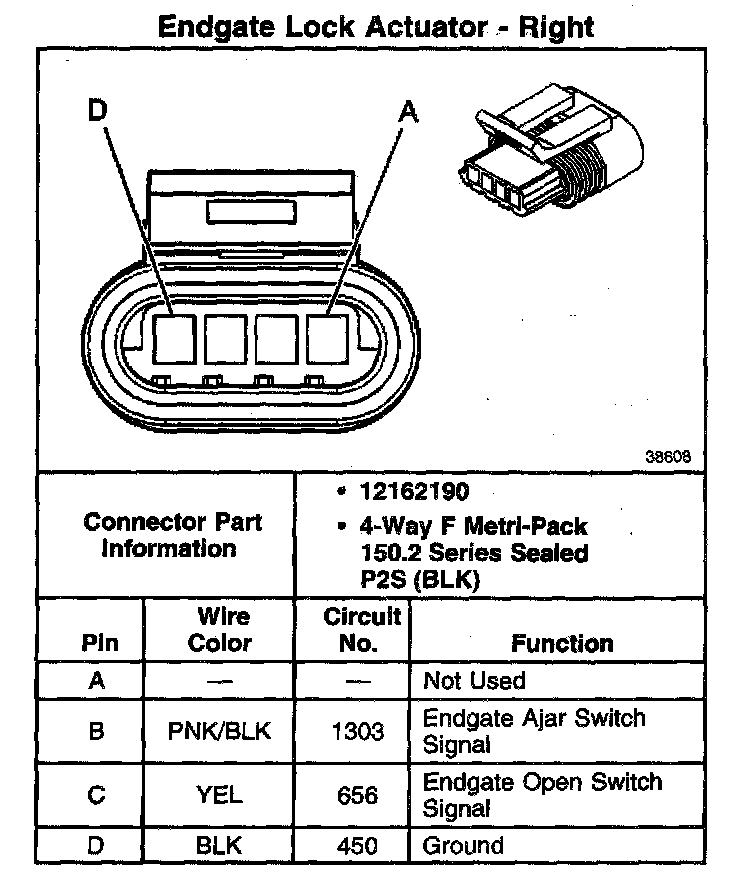

Endgate Lock Actuator - Right

Endgate Lock Actuator - Right:



Endgate Lock Actuator - Right:
