Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C300 - C399 >> C308 - Female Side

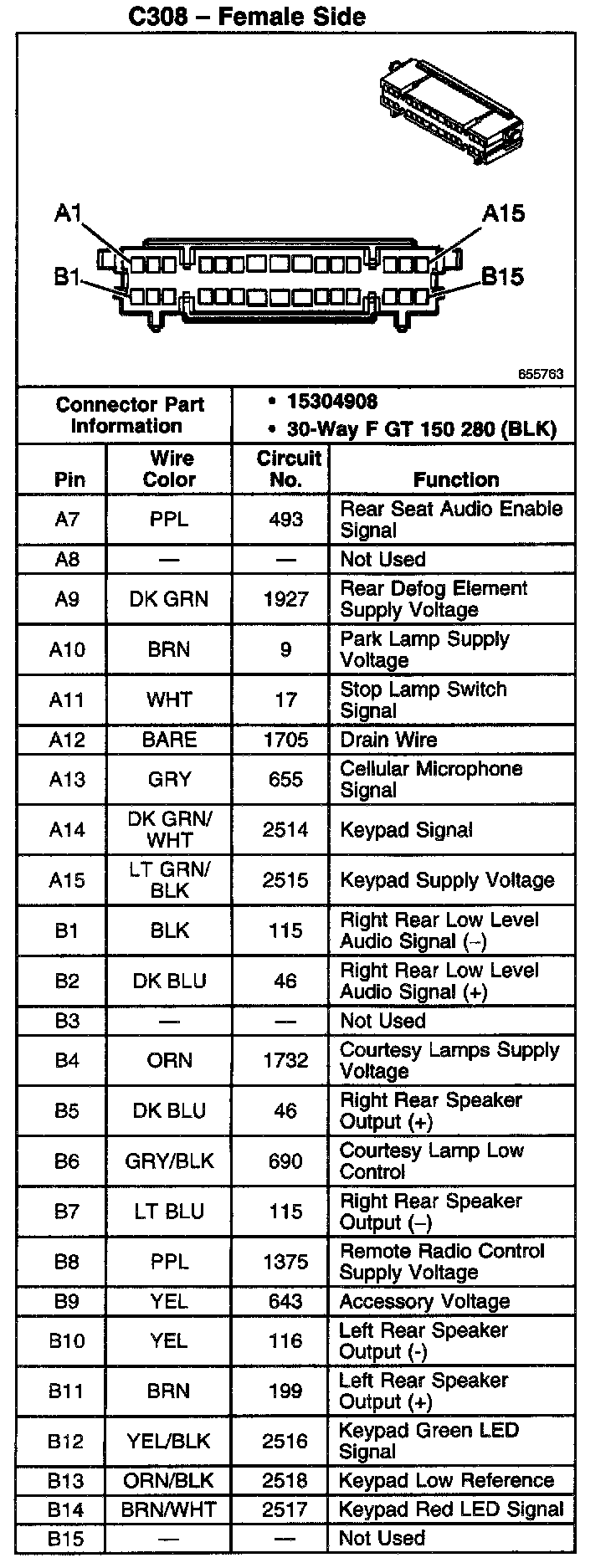

C308 - Female Side

C308 - Female Side (Part 1 Of 2):



C308 - Female Side (Part 2 Of 2):
