Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C100 - C199 >> C151 - Female Side

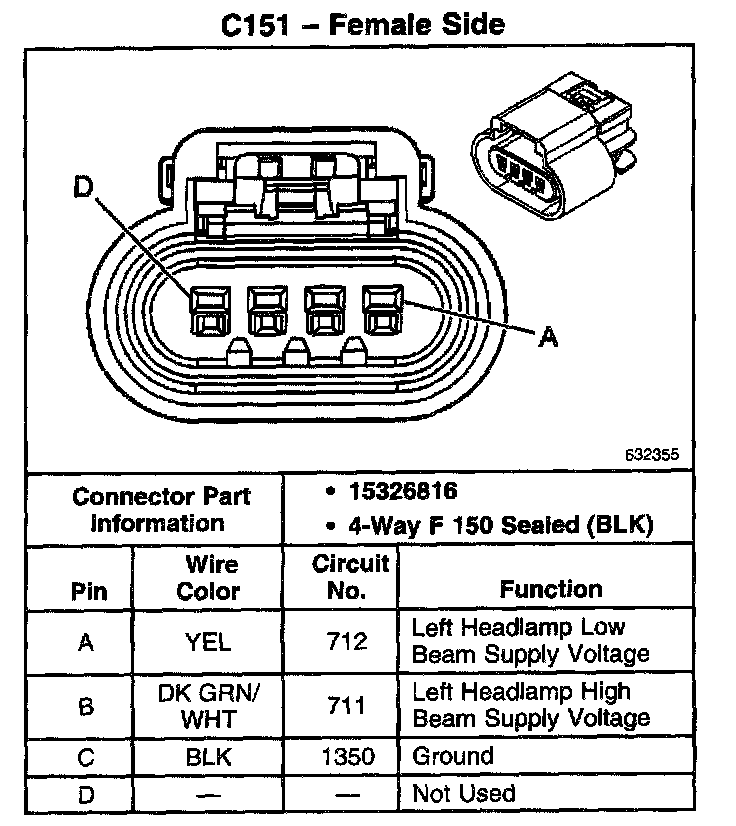

C151 - Female Side

C151 - Female Side:
