Canister Purge Solenoid
Canister Purge Solenoid

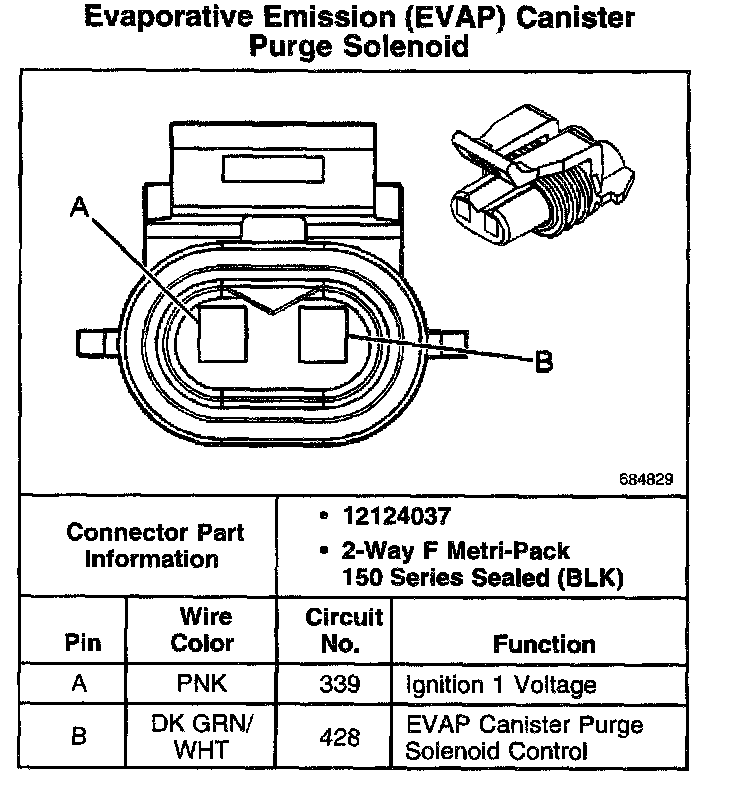

Evaporative Emission (EVAP) Canister Purge Solenoid:
