Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Automatic Transmission/Transaxle >> Transmission Position Sensor/Switch, A/T >> Transmission Range Switch C1 Connector Wiring Harness Side

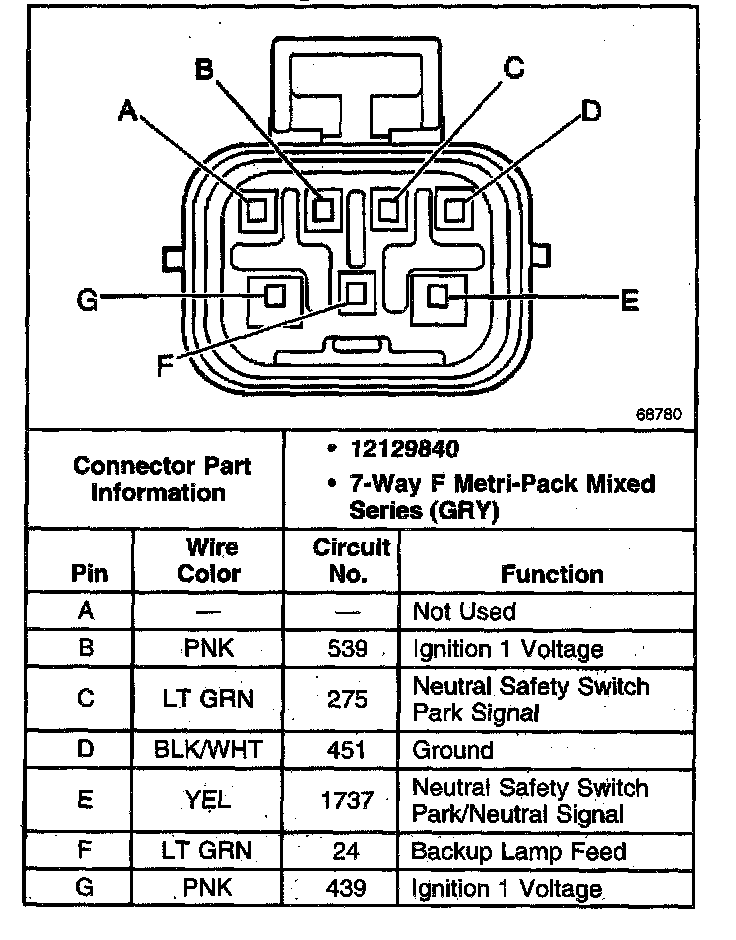

Transmission Range Switch C1 Connector Wiring Harness Side
