Vacuum Brake Booster Check Valve: Service and Repair

Vacuum Brake Booster Check Valve and/or Hose Replacement

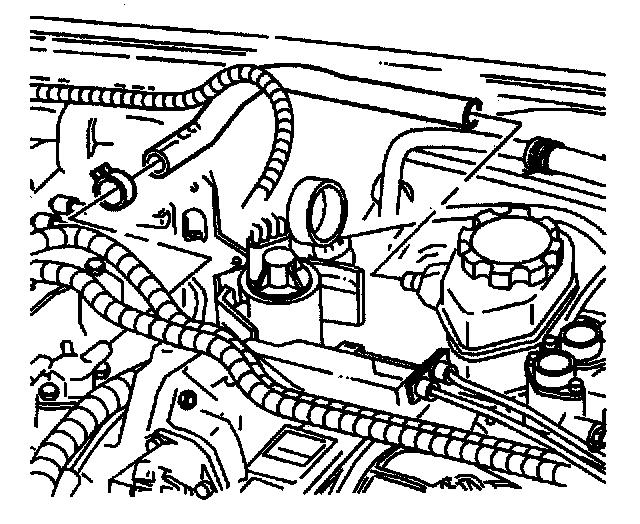

Removal Procedure

1. Remove the vacuum hose from the intake manifold.





2. Remove the vacuum brake booster check valve from the booster.





3. Remove the vacuum hose (1) from the vacuum brake booster check valve (2).

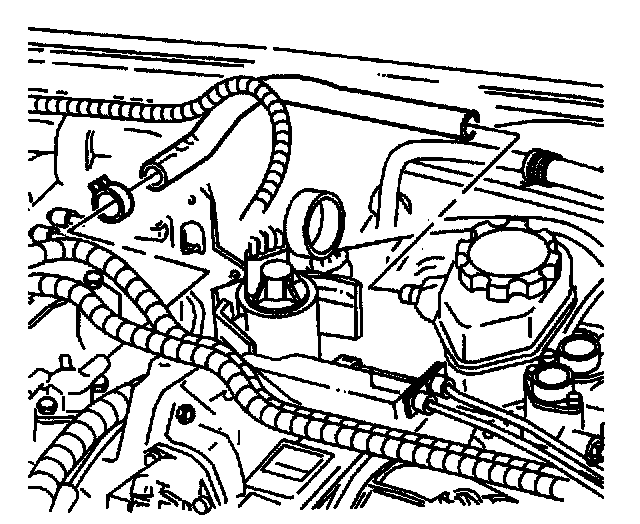

Installation Procedure





1. Install the vacuum hose to the intake manifold.
2. Install the check valve to the vacuum brake booster.





3. Install the vacuum hose (1) to the vacuum brake booster check valve (2).
