Home >> Pontiac >> 2001 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Diagrams >> Electrical Diagrams >> Indicators and Traction Control Switch

Indicators and Traction Control Switch

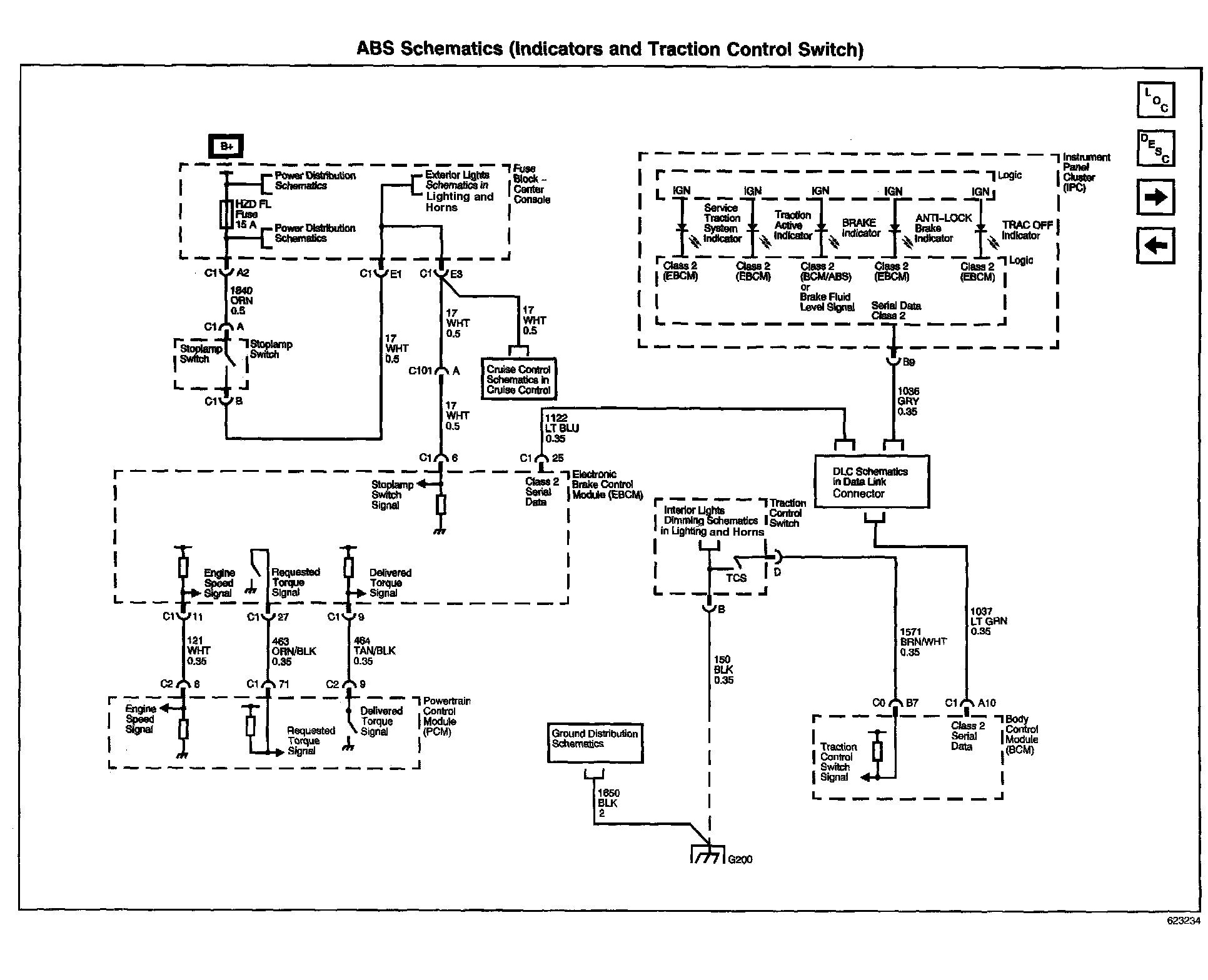

ABS Schematics: Indicators And Traction Control Switch:
