Weatherstrip Replacement - Rear Door Opening

REMOVAL PROCEDURE




1. Open the rear door.
2. Remove the rear door sill plates.
3. Remove the rear quarter upper trim panel.
4. Remove the rear quarter lower trim panel.
5. Remove the upper center pillar trim panel.
6. Remove the center lower trim panel.

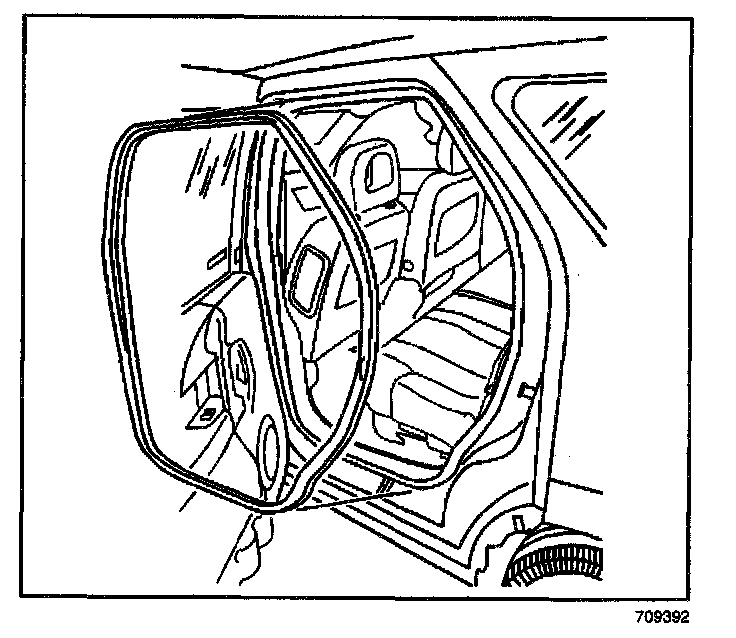

7. Remove the rear door opening weatherstrip by pulling it off the pinchweld flange.

INSTALLATION PROCEDURE

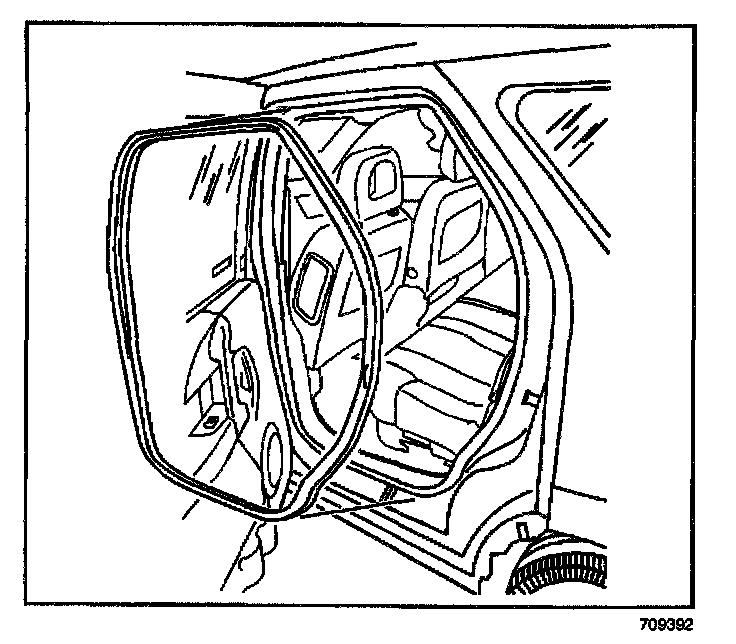

1. Position the rear door opening weatherstrip to the pinchweld flange.
Starting at the center of the rocker panel area and moving in a, clockwise direction press the rear door opening weatherstrip to the pinchweld flange until fully seated.

IMPORTANT: The joint butt ends must have no gap and be located in the center of the rocker panel area.

2. Install joint butt ends together.
3. Install the rear quarter upper trim panel.
4. Install the rear quarter lower trim panel.
5. Install the upper center pillar trim panel.
6. Install the center lower trim panel.
7. Install the rear door sill plates.
