Weatherstrip Replacement - Front Door Opening

REMOVAL PROCEDURE




1. Open the front door.
2. Remove the front door sill plates.
3. Remove the windshield garnish molding.
4. Remove the upper center pillar trim panel.
5. Remove the center lower trim panel.

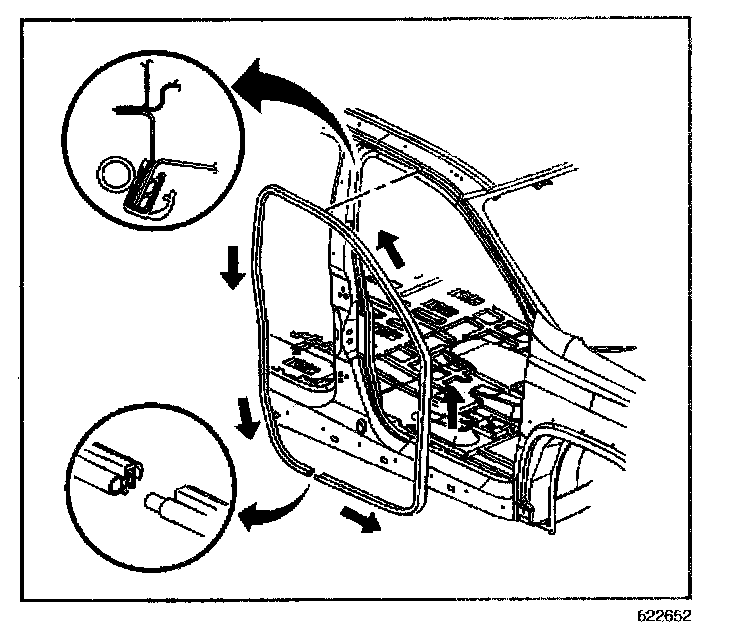

6. Remove the front door opening weatherstrip by pulling it off the pinchweld flange.

INSTALLATION PROCEDURE

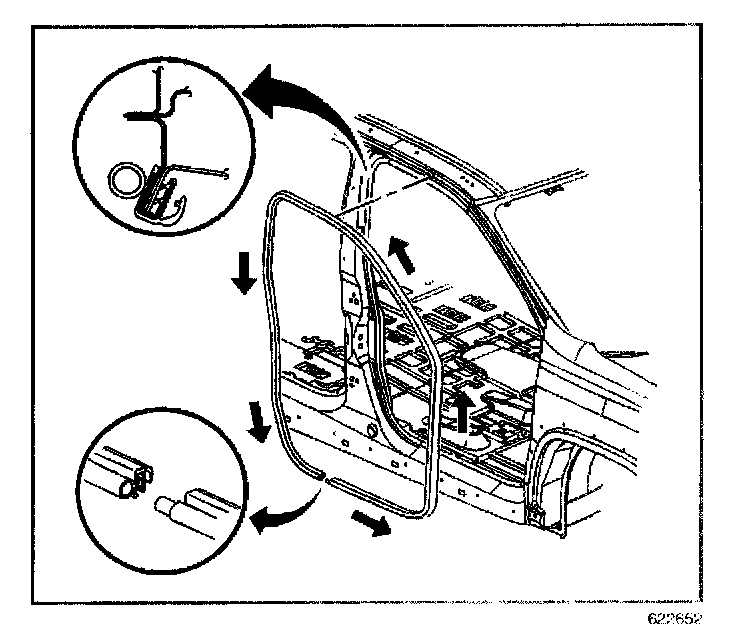

1. Position the front door opening weatherstrip to the pinchweld flange.
Starting at the center of the rocker panel area and moving in a clockwise direction press the front door opening weatherstrip to the pinchweld flange until fully seated.

IMPORTANT: The joint butt ends must have no gap and be located in the center of the rocker panel area.

2. Install joint buff ends together.
3. Install the door sill plates.
4. Install the windshield garnish molding.
5. Install the upper center pillar trim panel.
6. Install the center lower trim panel.
7. Close the front door.
