Speaker Replacement - Rear

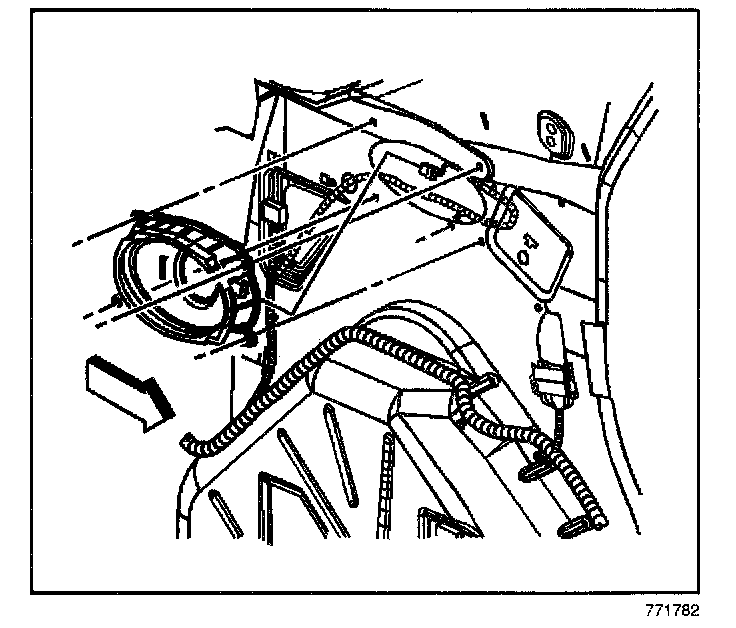

REMOVAL PROCEDURE




1. Remove the rear quarter trim.
2. Remove the speaker bolts.
3. Disconnect the electrical connectors from the speaker.
4. Remove the speaker.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the rear radio speaker.
2. Install the rear radio speaker.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the speaker screws.

Tighten
Tighten the screws to 3 N.m (28 lb in).

4. Install the rear quarter trim.
