Speaker Replacement - Front Upper

REMOVAL PROCEDURE

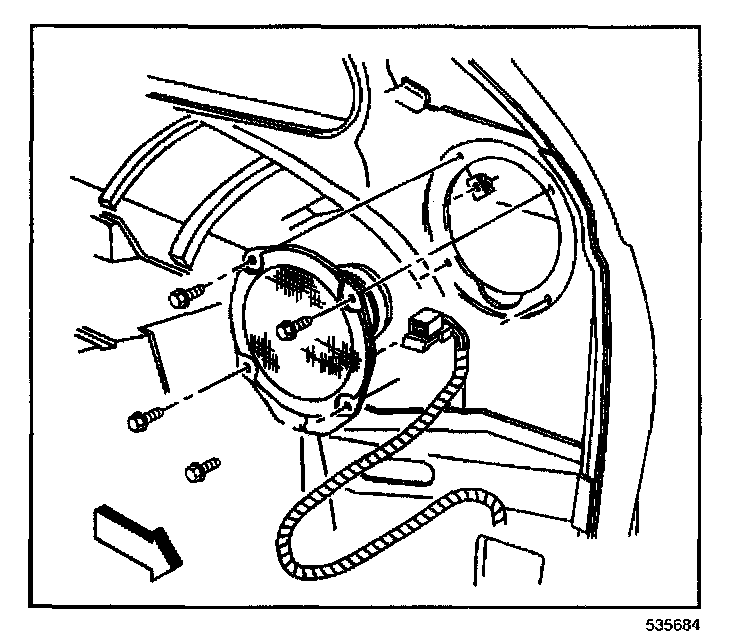

1. Remove the front door trim panel assembly in order to expose the speaker.
2. Disconnect the wire harness from the speaker.
3. Remove the speaker from the door trim panel assembly.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the speaker to the door trim panel assembly.

Tighten
Tighten the speaker screws to 3.2 N.m (28 lb in).

2. Connect the wire harness to the speaker.
3. Install the trim panel assembly to the front door.
