B0008
CIRCUIT DESCRIPTIONThe Body Control Module (BCM) monitors the Park Neutral Position switch position. The BCM uses the position of the switch to determine when to perform certain body control functions.
CONDITIONS FOR SETTING THE DTC
The BCM detects a short to battery in the Park Neutral Position circuit while IGN1 is not active.
ACTION TAKEN WHEN THE DTC SETS
The BCM stores DTC B0008 in memory.
CONDITIONS FOR CLEARING THE DTC
^ The current DTC B0008 will clear when the BCM the condition for setting the DTC is no longer present.
^ A history DTC B0008 clears after 100 ignition cycles if the condition for setting the DTC is no longer present

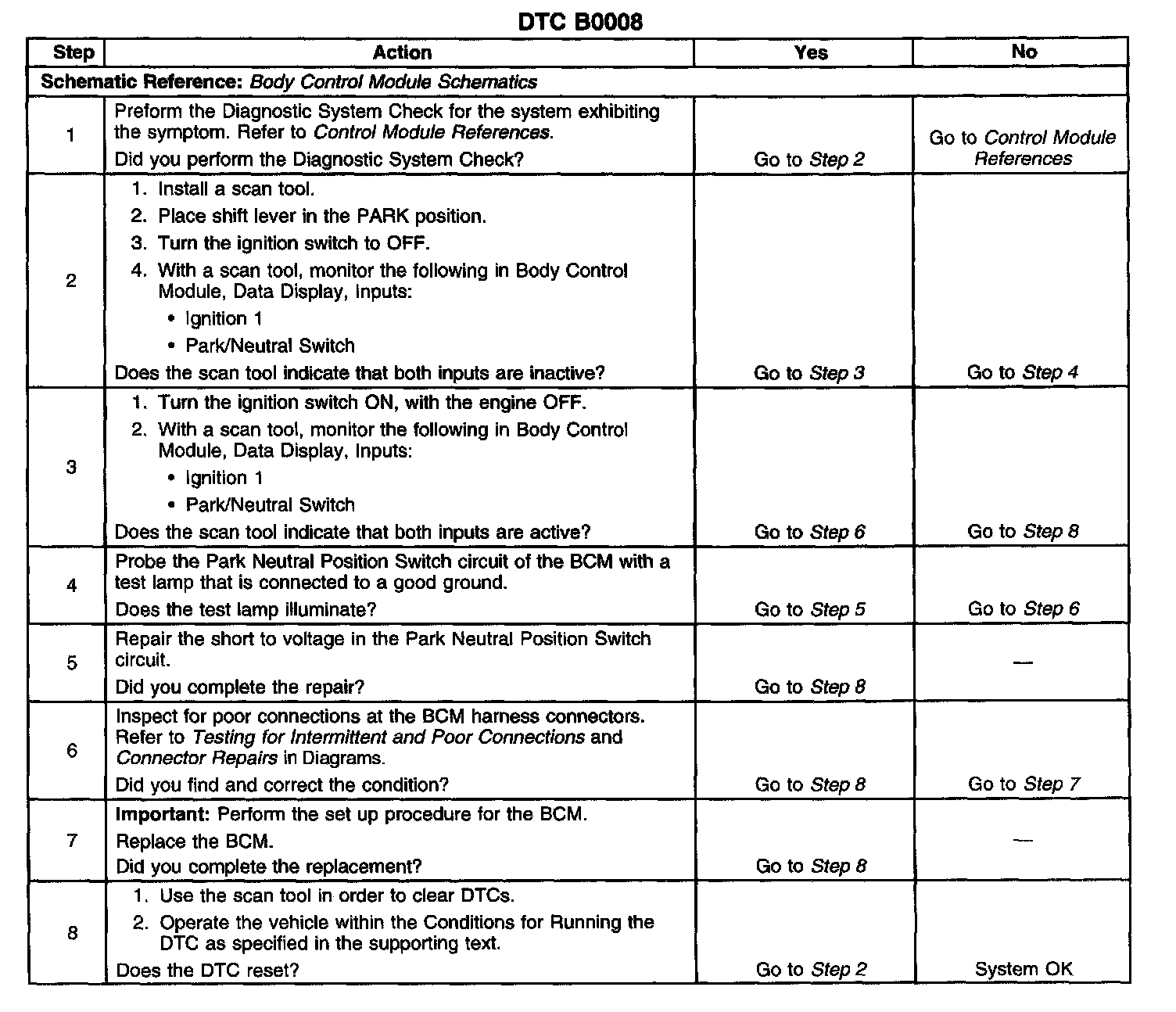

TEST
