Park Pawl Actuator: Removal

  1. Remove steering column trim covers. See STEERING COLUMN TRIM COVERS  .
  2. Remove tie straps from park position strip.

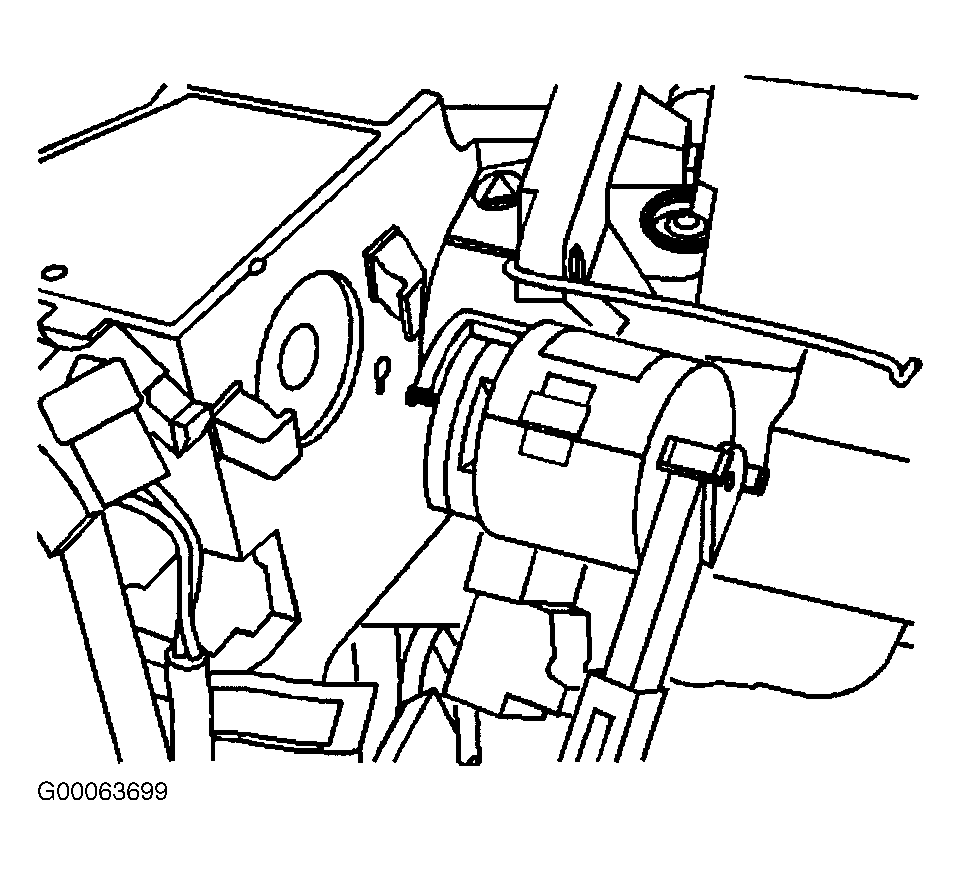

  3. Rotate park position switch to remove. See Figure .
  4. Disconnect harness connector.
