Driver Information Center Switch: Removal

  1. Remove knee bolster panel.

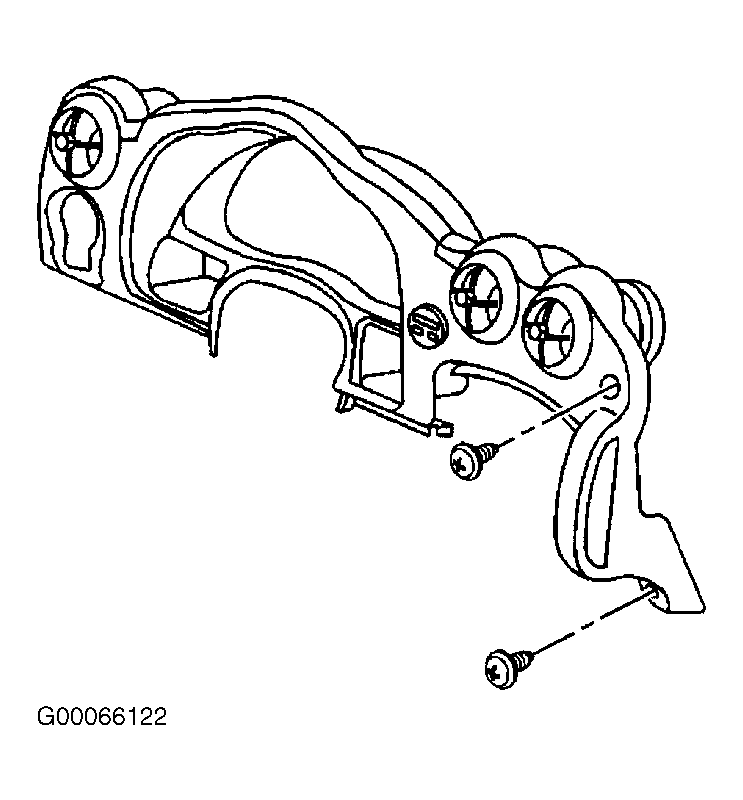

  2. Remove screws from Instrument Panel (IP) cluster trim plate at assist handle. Pull out IP cluster trim plate to release from retainers.
  3. From back side of IP cluster trim panel disconnect Driver Information Center (DIC) from I/P cluster trim plate panel. See Figure.
  4. Loosen steering column bracket and lower steering column. Remove IP cluster trim plate.
  5. Disconnect driver information center switch harness connection.

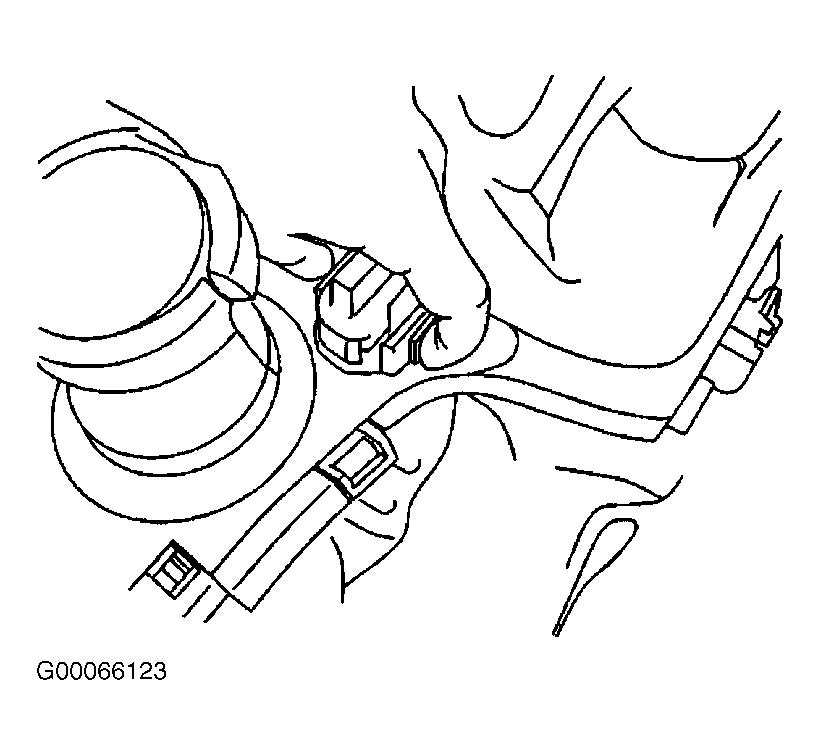

  6. Remove driver information center switch. See Figure.
