Suspension - Rear: Description

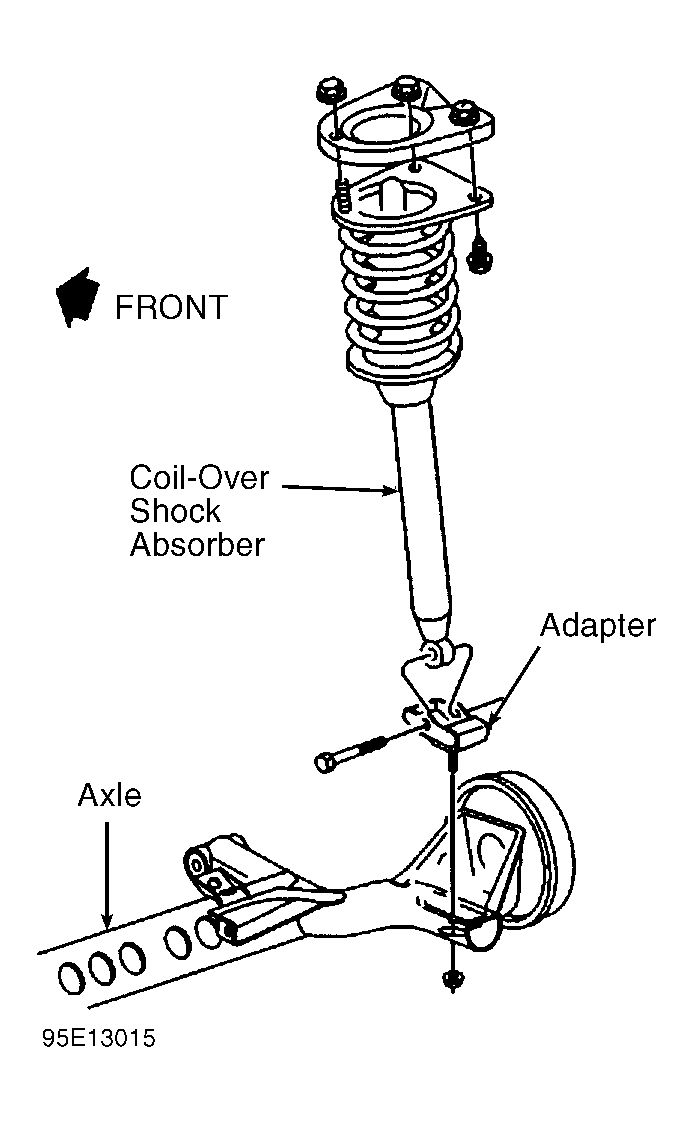

Suspension consists of an axle assembly with trailing arms and coil-over shock absorbers. See Fig 1. Axle assembly pivots on rubber control arm bushings. Hub and bearing assembly is a sealed unit and cannot be serviced. The stabilizer shaft is attached to the inside of the axle beam.
