Suspension - Rear: Description

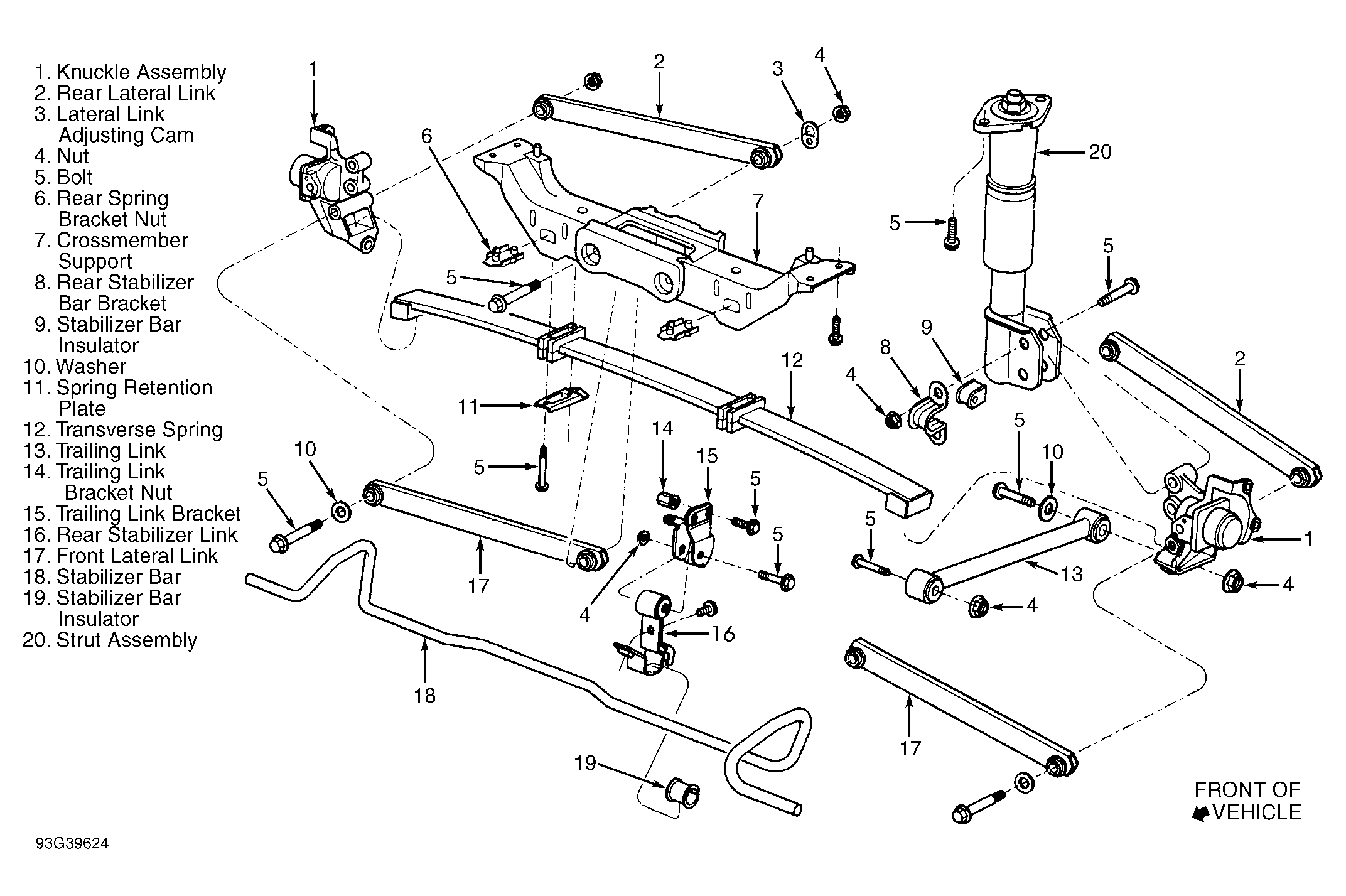

On Grand Prix, a composite fiberglass mono-leaf transverse spring bears weight of vehicle. See Figure. Struts (attached to body at top and a knuckle at bottom) dampen suspension movement. Knuckle is secured to frame and crossmember support by trailing links and front and rear lateral links. Rear wheel camber is adjusted at strut lower mounting bolts. Rear wheel toe is adjusted at cam on inner end of each rear lateral link.
