| Camshaft Sprocket Bolt |
18 (25) |
| Connecting Rod Cap Nut |
| Step 1 |
20 (27) |
| Step 2 |
Additional 55 Degrees |
| Crankshaft Balancer & Hub-To-Crankshaft Bolt |
74 (100) |
| Crankshaft Balancer-To-Hub Bolt |
63 (85) |
| Crankshaft Rear Oil Seal Housing Bolt |
11 (15) |

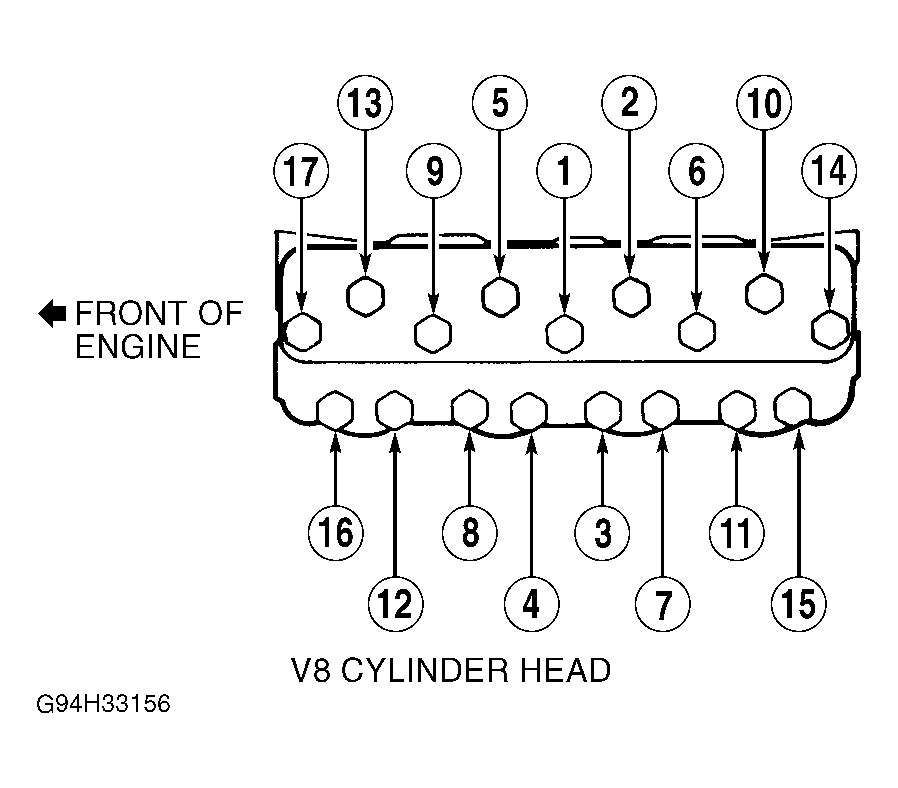

| Cylinder Head Bolt |
65 (88) |
| Exhaust Manifold Bolt |
26 (35) |
| Flexplate/Flywheel-To-Crankshaft Bolt |
74 (100) |

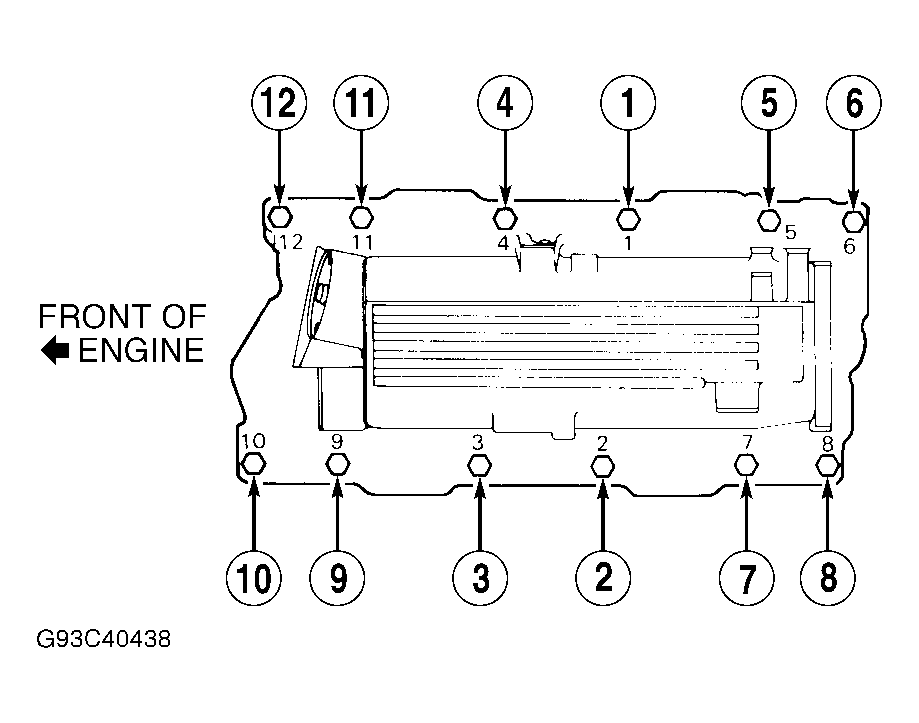

| Intake Manifold Bolt |
|
| Main Bearing Cap Bolt |
77 (105) |
| Oil Filter Adapter |
17 (23) |
| Oil Pan Baffle Nut |
30 (40) |
| Oil Pan Bolt/Nut (Corners) |
15 (20) |
| Oil Pump-To-Main Bearing Bolt |
66 (90) |
| Rocker Arm Stud |
50 (68) |
| Secondary Air Injection |
| Air Pump Bracket-To-Block |
30 (40) |
| Air Check Valve |
17 (23) |
| Right Side Air Pipe-To-Exhaust Manifold |
18 (25) |
| Left Side Air Pipe-To-Exhaust Manifold |
18 (25) |
| Throttle Body Bolt |
18 (25) |
| Torque Converter-To-Flexplate Bolt |
46 (62) |
| Valve Lifter Guide Bolt |
18 (25) |
| Water Pump Pulley Bolt |
22 (30) |
| Water Pump-To-Block Bolt |
30 (40) |
| INCH Lbs. (N.m) |
| Front Cover Bolt |
97 (11) |
| Oil Pan Bolt/Nut (Except Corners) |
97 (11) |
| Secondary Air Injection |
| Air Pump-To-Bracket Bolt |
50 (5.6) |
| Cross Air Pipe Mounting Bolt |
50 (5.6) |
| Valve Cover Bolt |
106 (12) |
