Coil Springs & Insulators: Removal

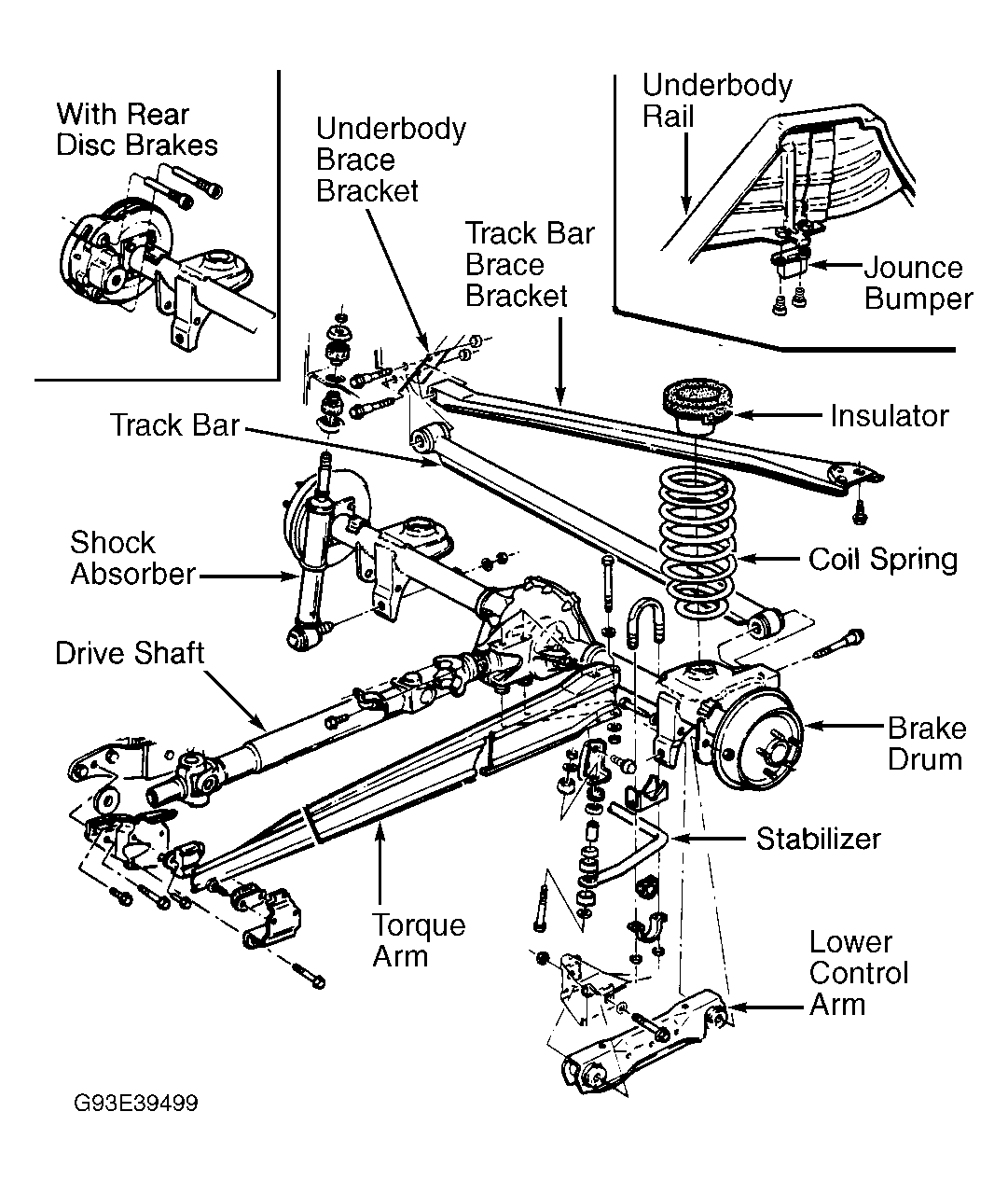

Raise and support vehicle by frame. Support rear axle housing using adjustable lifting device. Disconnect shock absorber from lower mount. See Figure. Lower axle housing assembly, being careful not to damage brake hose. Remove upper insulator and spring.
