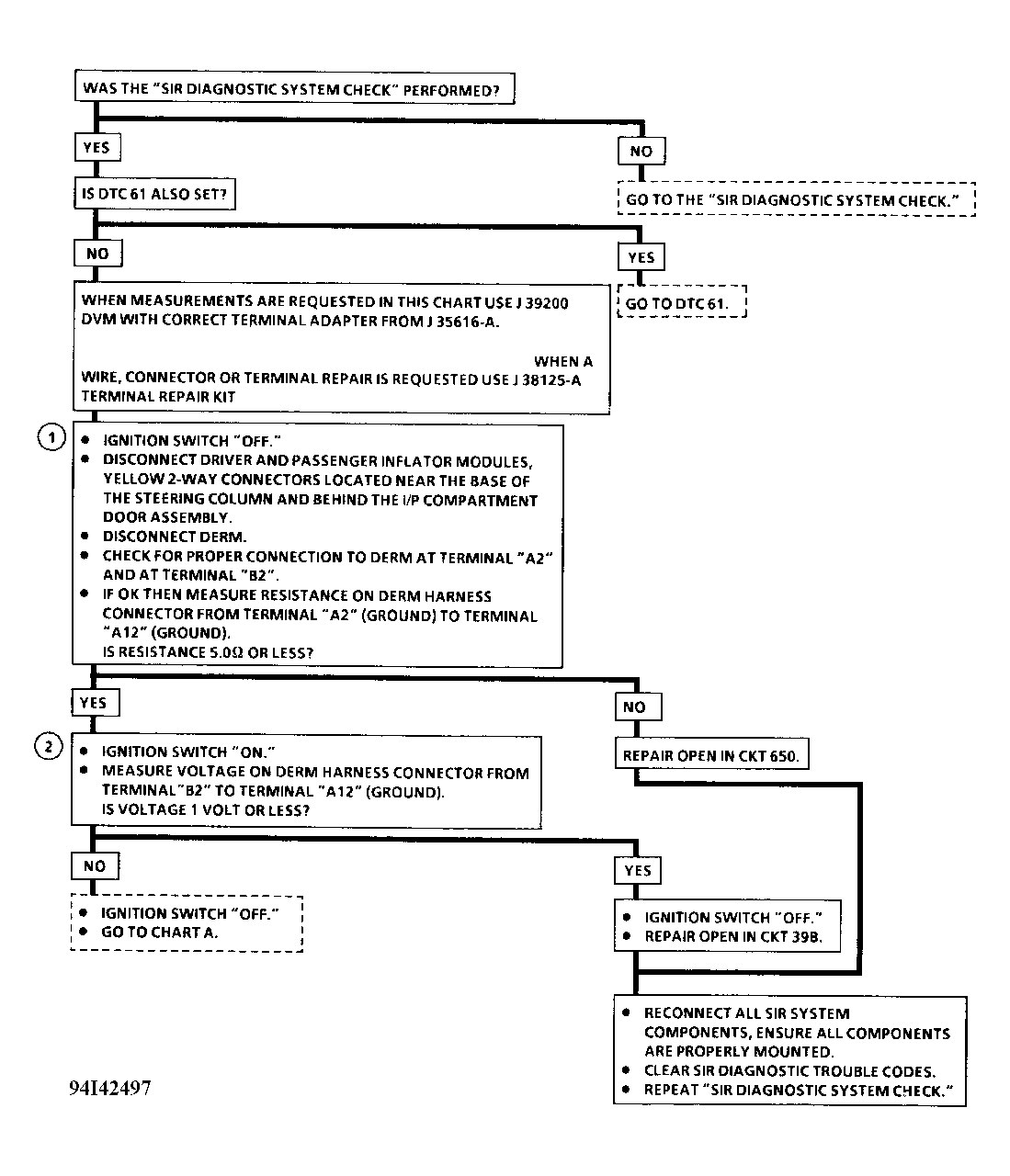

Diagnostic Aids
An intermittent condition is likely to be caused by a poor connection to DERM at terminal A2 or B2, an open in circuit No. 650 or an open in circuit No. 39B.
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
