Diagnostic Aids

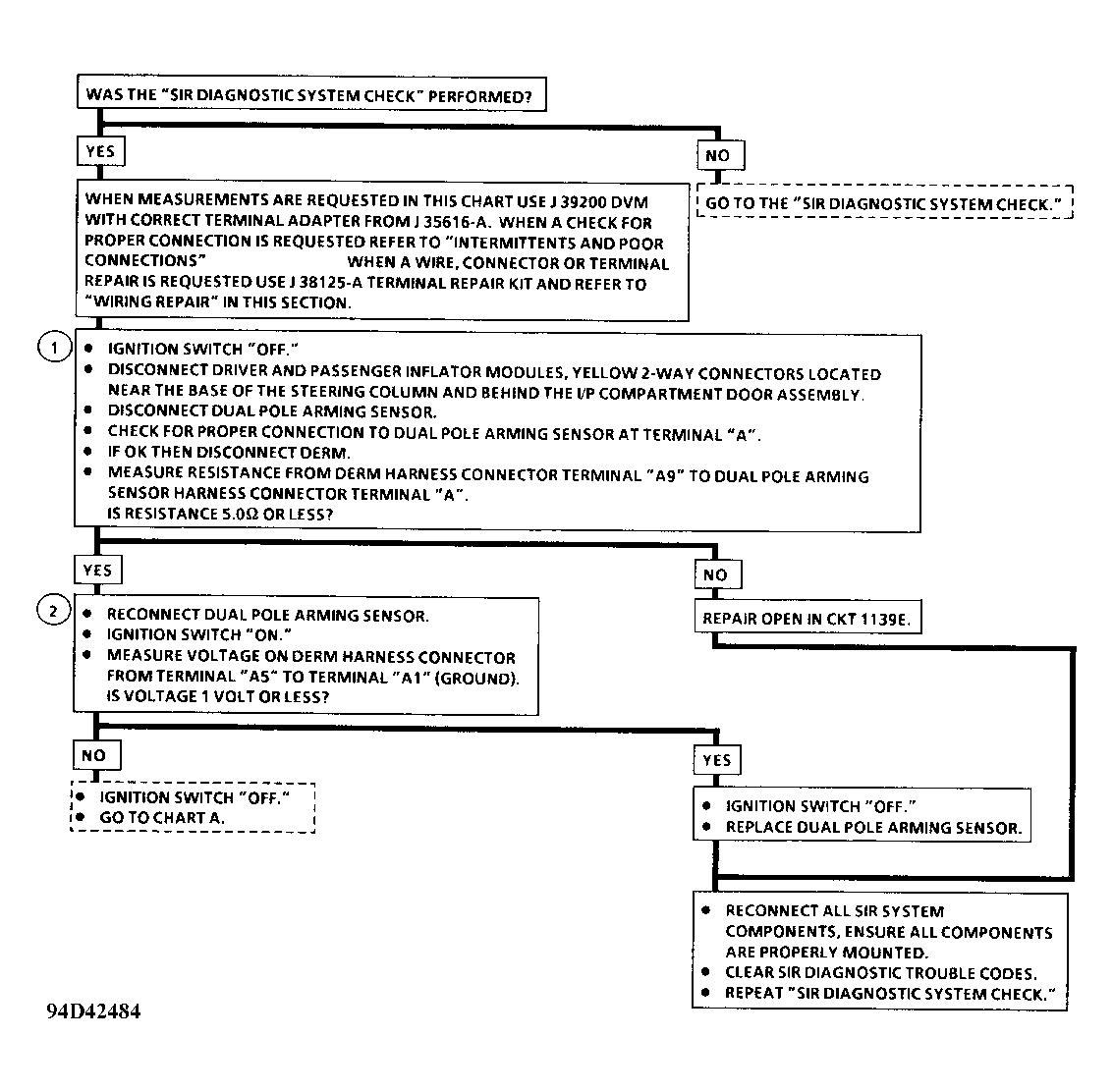

An intermittent condition is likely to be caused by an improper connection at dual pole arming sensor terminal "A" or "D", and "F", improper connection at DERM terminal A5 or A6, open ignition feed to dual pole arming sensor, open DRIVER SOURCE SENSE circuit and open PASSENGER SOURCE SENSE circuit, or malfunctioning dual pole arming sensor ignition diodes. The test for this diagnostic trouble code is only run while AIR BAG warning light is performing bulb check. When a scan tool CLEAR CODES command is issued and malfunction is still present, DTC will not reappear until ignition switch is turned off for at least 2 minutes with entire SIR system connected and then ignition switch is turned on.
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
