Action Taken
DERM turns on AIR BAG warning light and sets a Diagnostic Trouble Code (DTC).
NOTE:

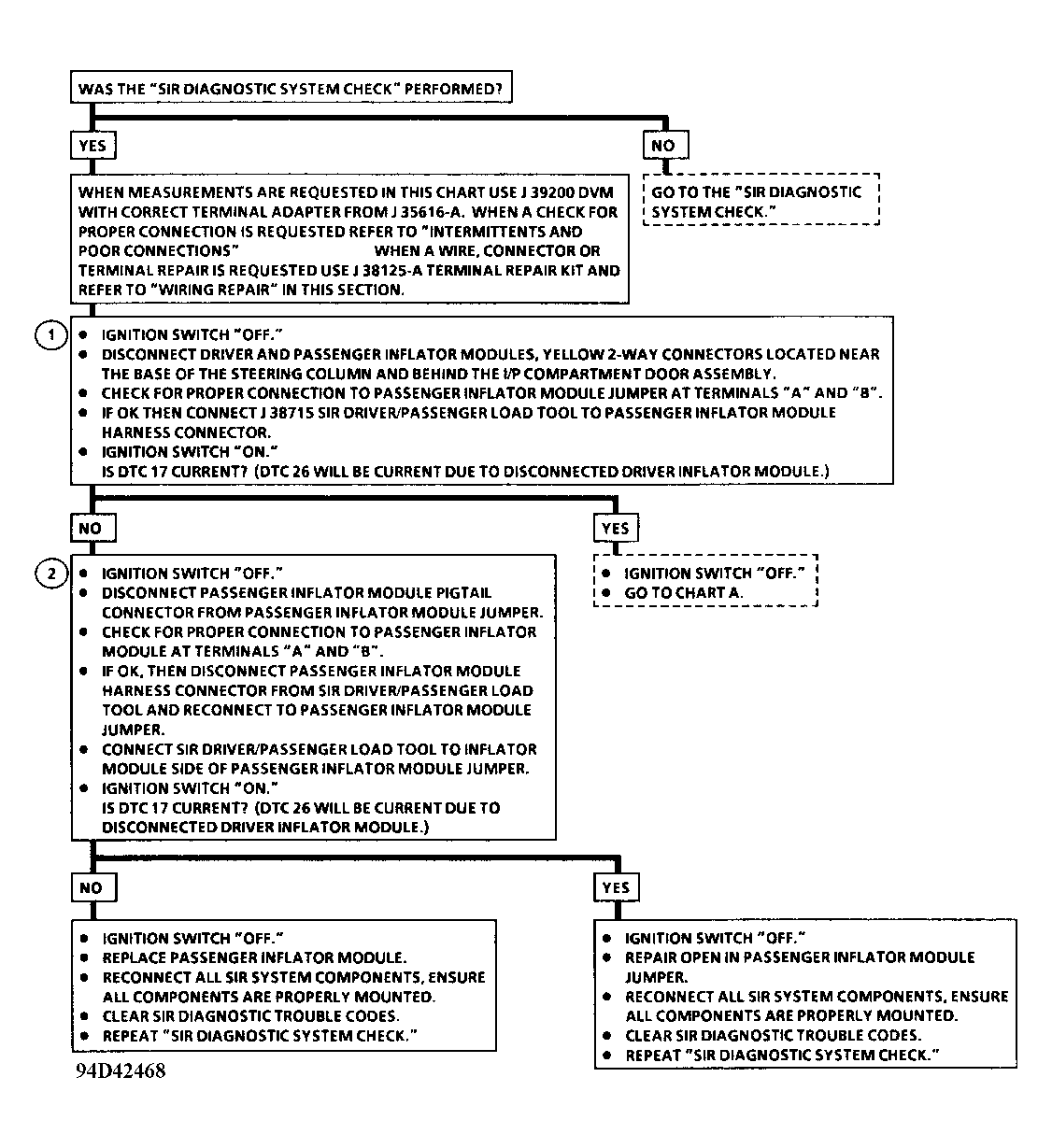

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
- Checks whether malfunction is in passenger inflator module circuit.
- Checks whether malfunction is in passenger inflator module or passenger inflator module jumper.
WARNING:
To avoid air bag deployment and injury when trouble shooting system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
