Clutch Assembly: Removal

  1. Remove compressor from vehicle and support using Holding Fixture (J-33026 for HD6/HR6-HE compressor or J-34992 for V5 compressor). Using Clutch Plate Spanner (J-25030 for HD6/HR6-HE compressor or J-33027-A for V5 compressor), hold clutch plate and remove compressor shaft nut.
  2. Use Clutch Plate Remover/Installer (J-33013-B) to remove clutch plate. See Fig 1 or Fig 2. Remove key from shaft. Remove snap ring. Install Guide (J-33022) on front head. Position Puller (J-33020) in slots on pulley assembly. Tighten puller and remove pulley assembly.
  3. Use hammer and Bearing Remover (J-9398-A) to drive bearing from pulley. Disconnect clutch coil lead.
  4. Scribe marks on compressor and clutch coil for installation reference. Remove clutch coil using Puller Adapter (J-33023-A) and 2-jaw puller.

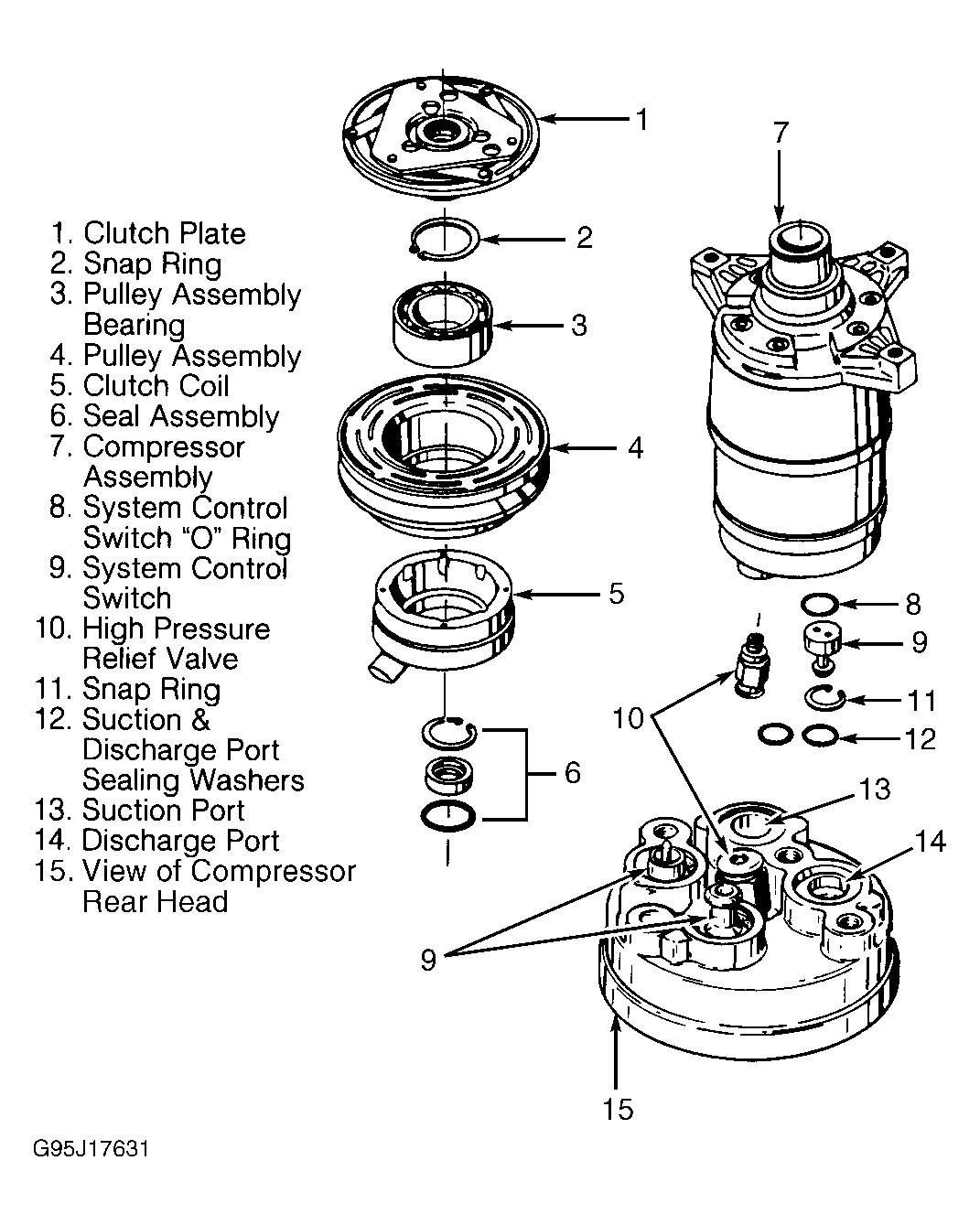

Fig 1: Compressor Components (Harrison HD6/HR6-HE 6-Cyl.)
G95J17631Courtesy of GENERAL MOTORS CORP.

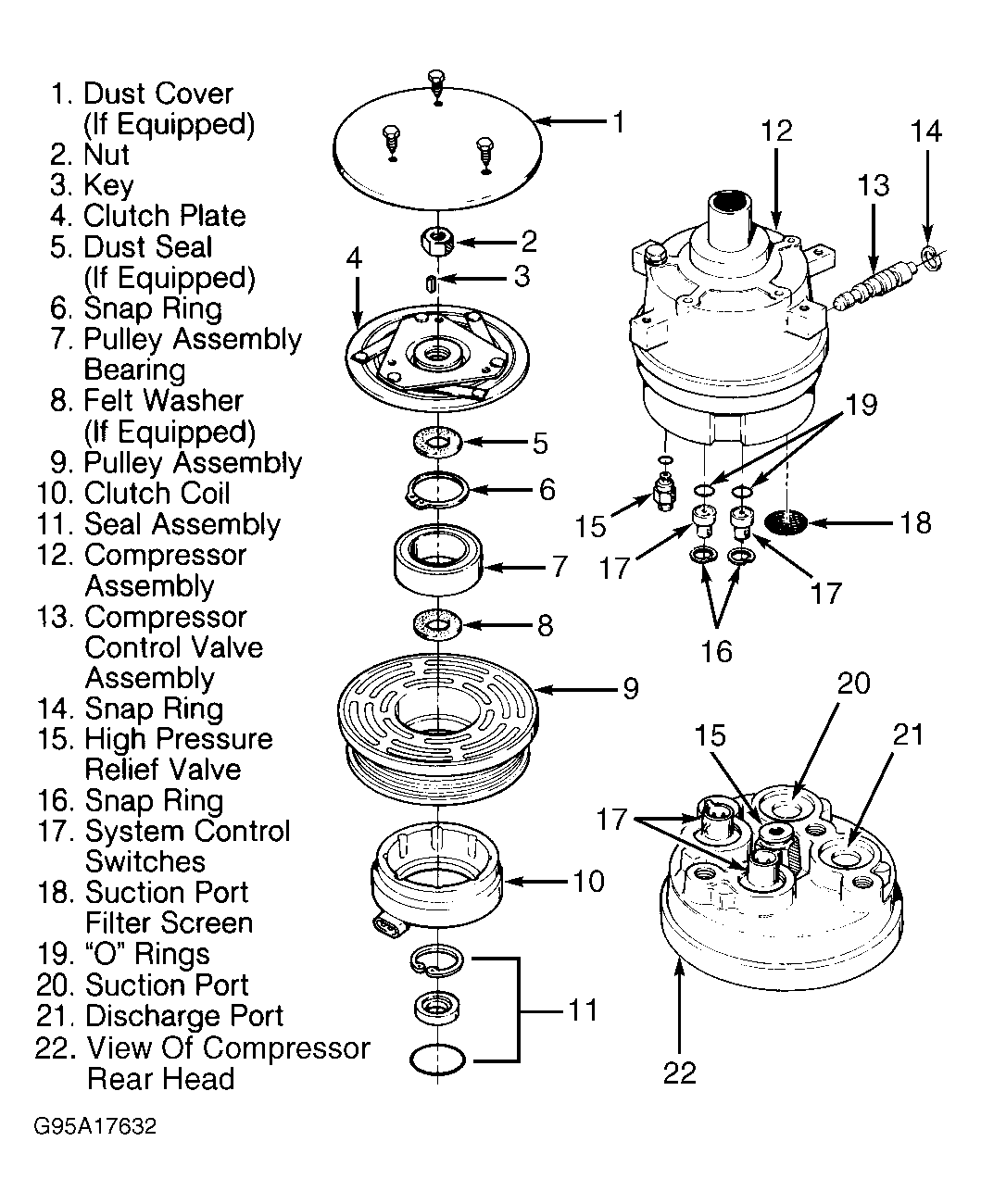

Fig 2: Compressor Components (Harrison V5 5-Cyl.)
G95A17632Courtesy of GENERAL MOTORS CORP.
