Solenoids & Solenoid Valves
SOLENOIDS & SOLENOID VALVES LOCATION
| Component | Location |
|---|---|
| ABS Solenoids | On ABS hydraulic modulator assembly. |
| Brake Transmission Shift Interlock (BTSI) Solenoid (A/T) | Forward of gear shift lever base. |

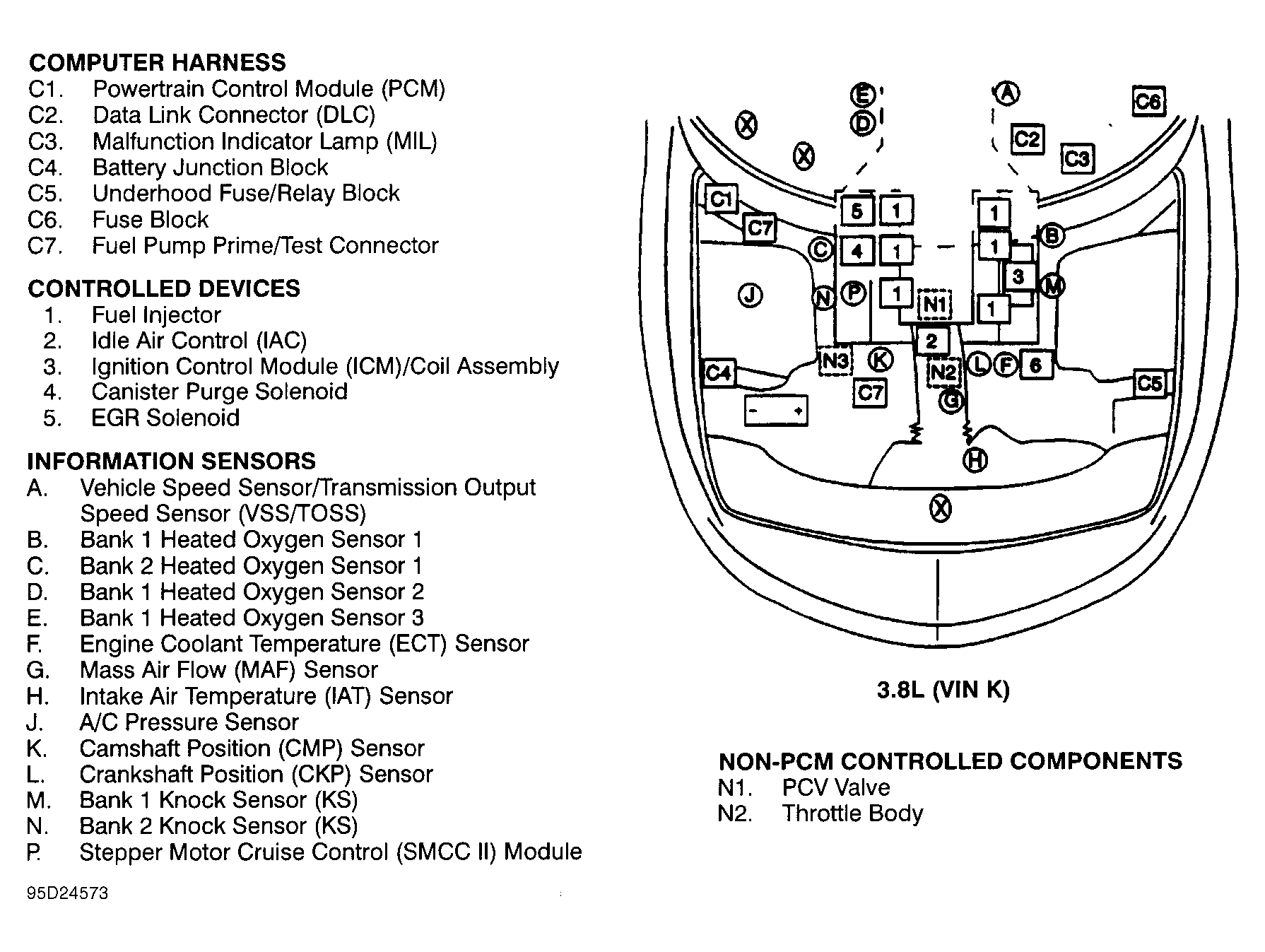

| Canister Purge Solenoid | On right side of upper intake plenum. See Figure . |
| EGR Solenoid | On top left front of engine. See Figure . |
| Idle Air Control (IAC) Valve | On throttle body. See Figure . |
| Reverse Lock-Out Solenoid (M/T) | On left side of transmission, near base of shift lever. |
| Skip Shift Solenoid | On center of left side of transmission. |
| Torque Converter Clutch (TCC) Solenoid | On left side of transmission. |
