Chart A - (W/O TCS) Abs Amber Warning Light On Or Off Constantly, No Codes Stored

NOTE: Complete diagnostic system check before using this chart.

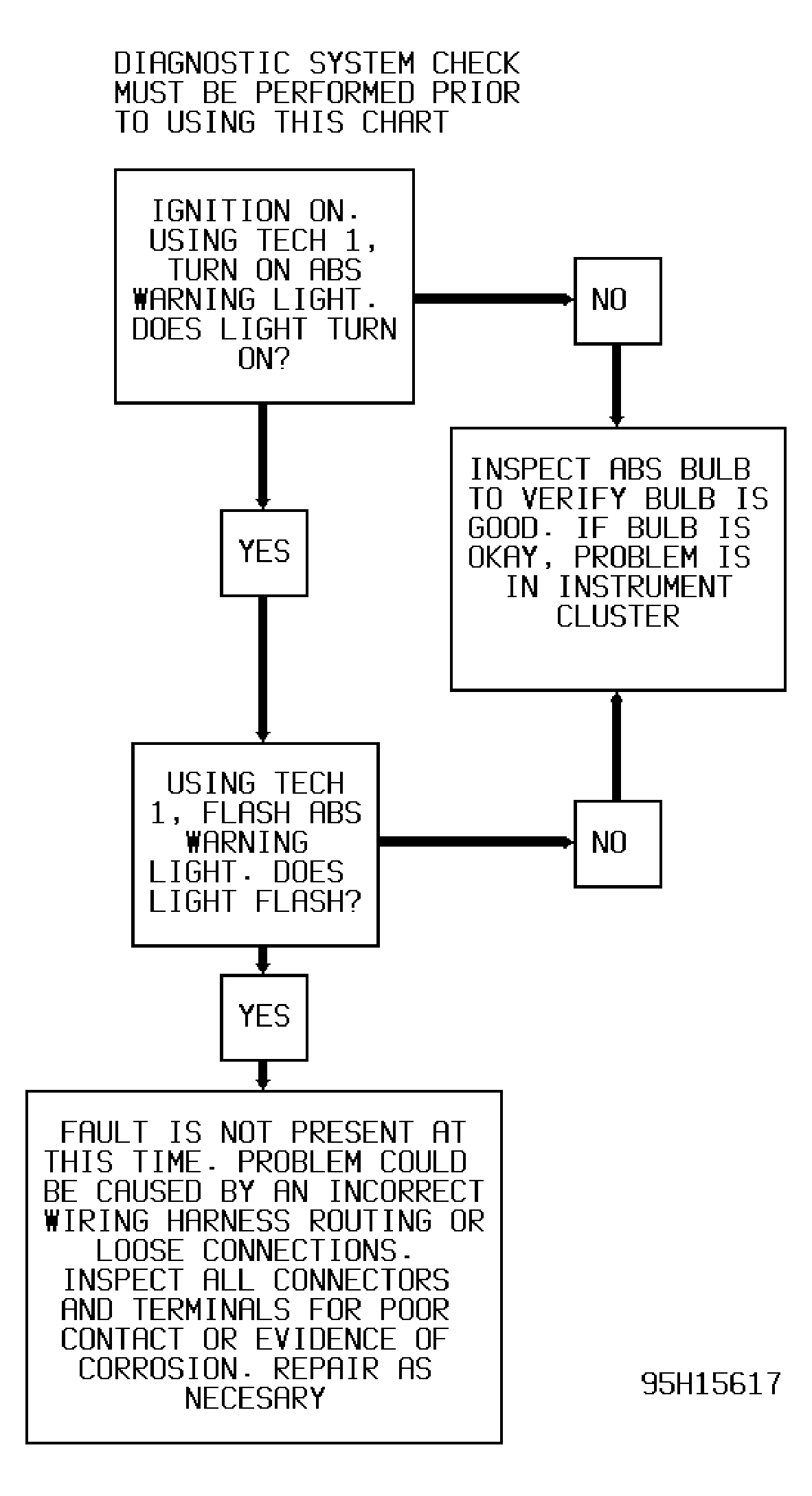

Fig 1: Symptom Diagnostic Chart A (W/O TCS)
G95H15617Courtesy of GENERAL MOTORS CORP.
