Wiring Diagrams

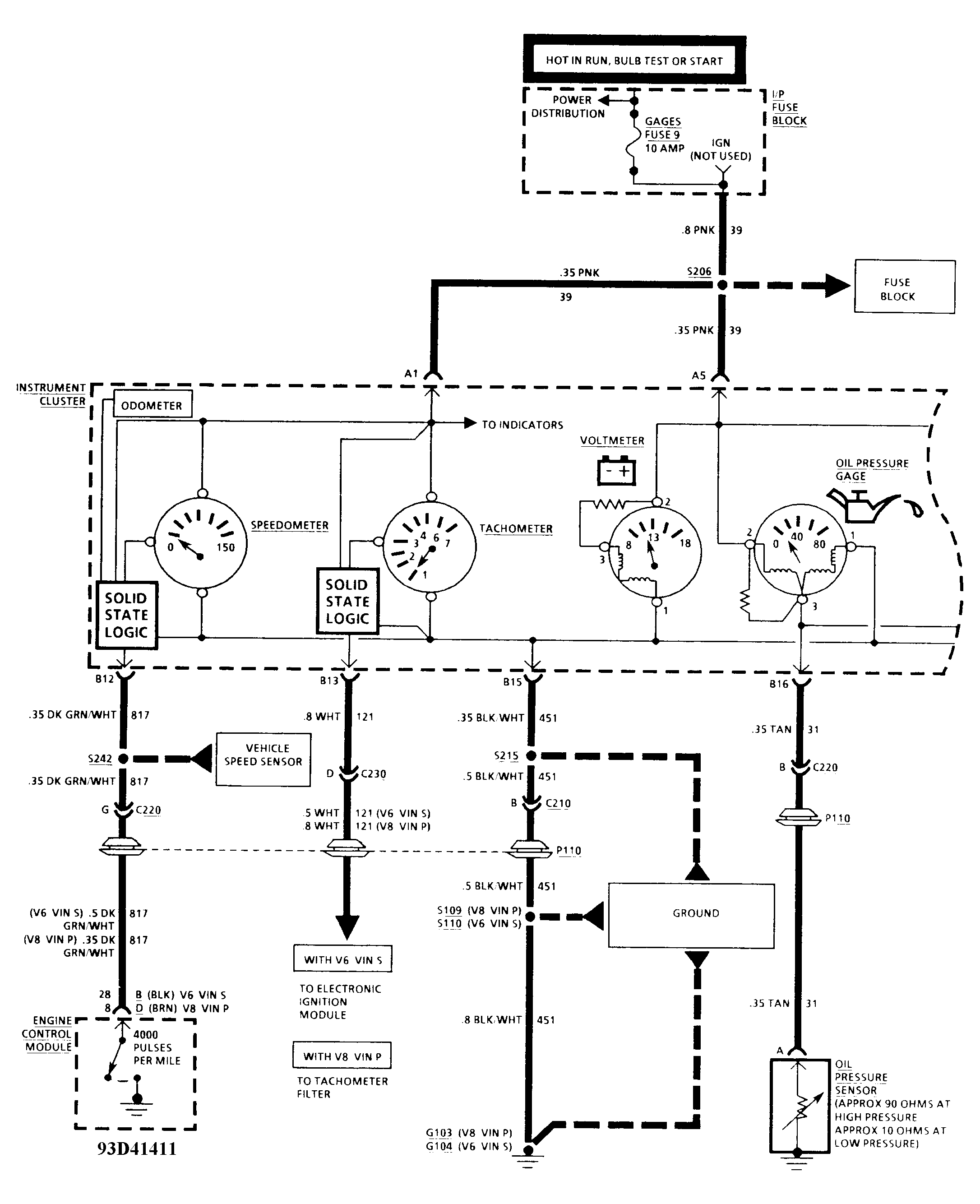

Fig 1: Analog Instrument Panel Wiring Diagram (1 Of 4)
G93D41411Courtesy of GENERAL MOTORS CORP.

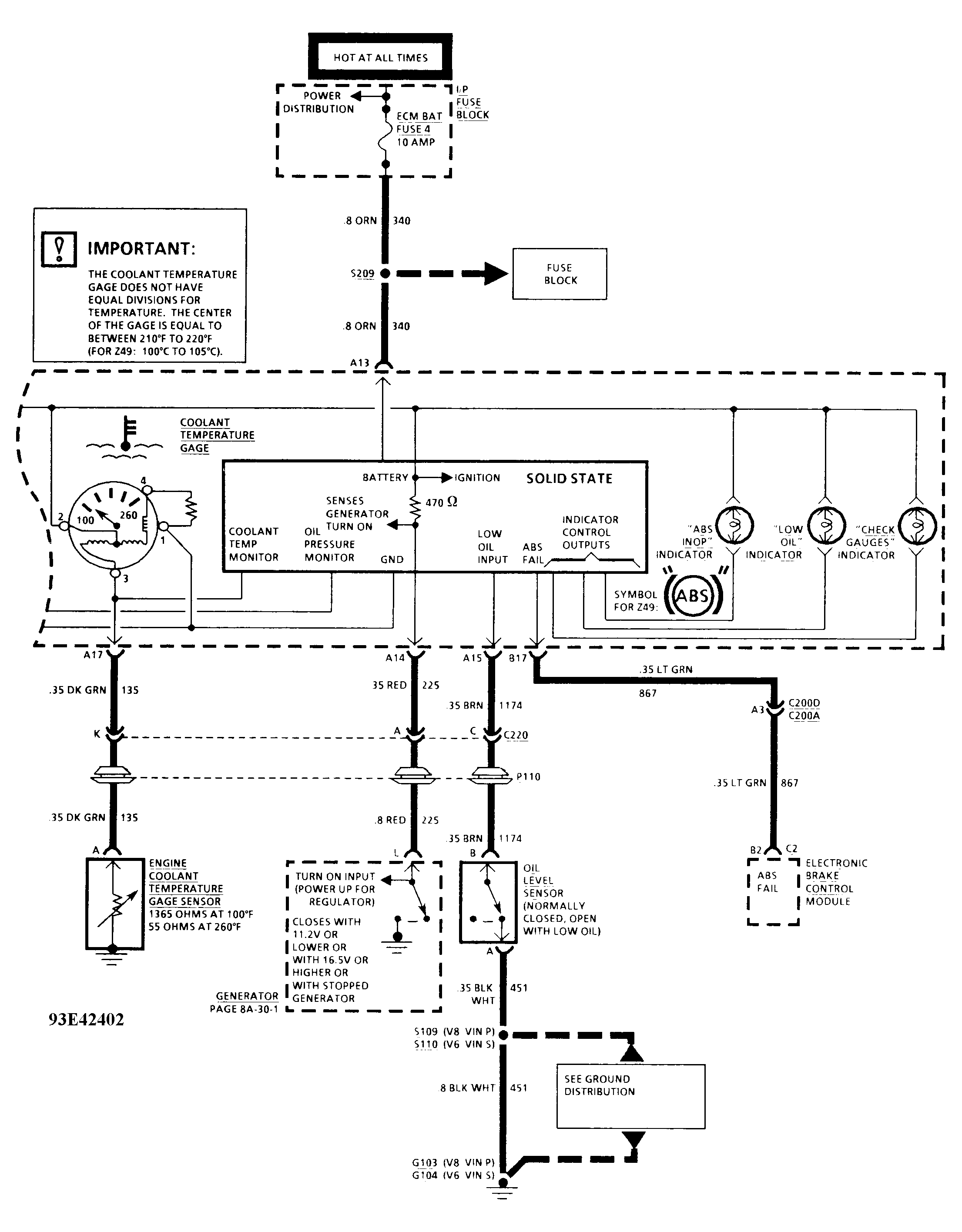

Fig 2: Analog Instrument Panel Wiring Diagram (2 Of 4)
G93E42402Courtesy of GENERAL MOTORS CORP.

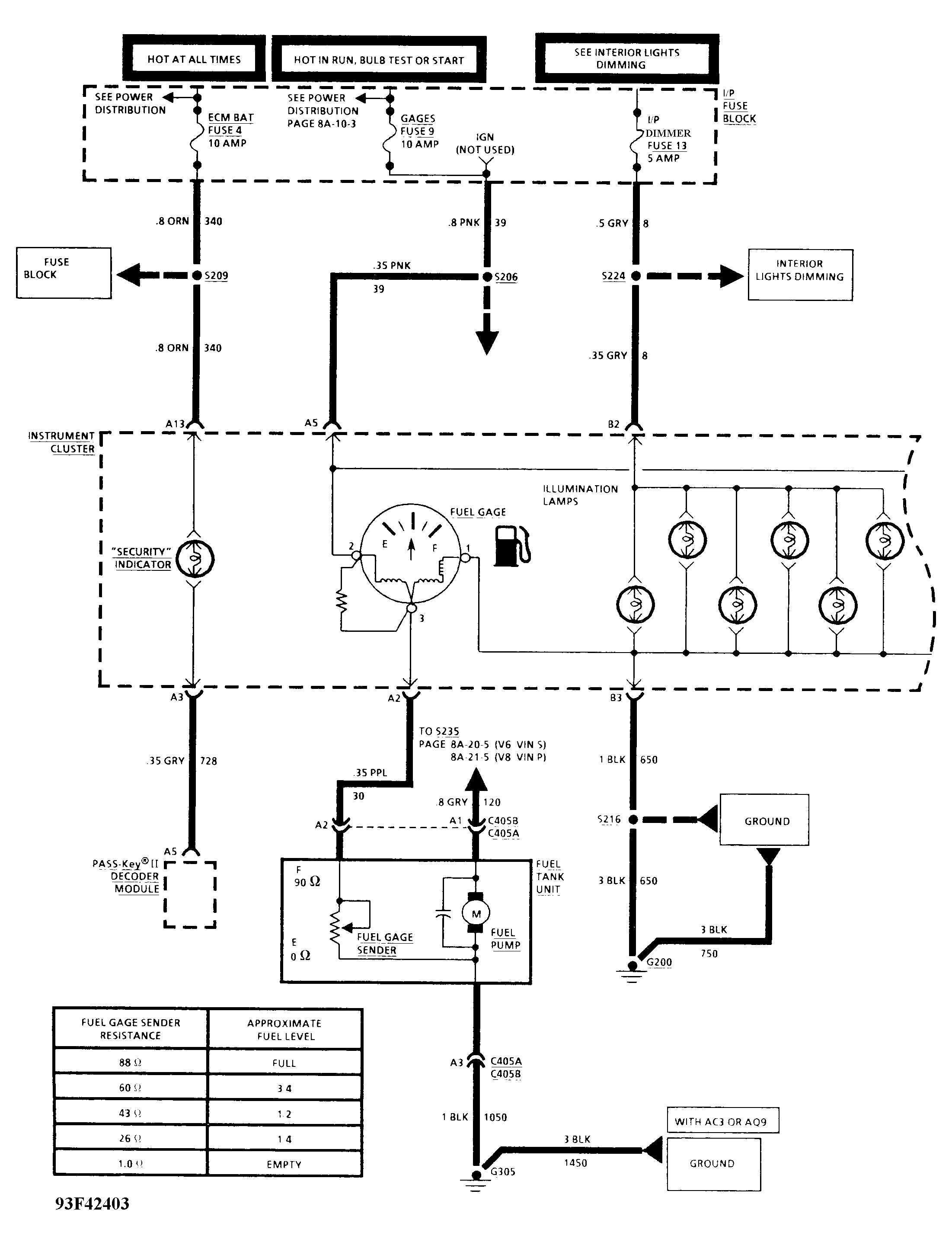

Fig 3: Analog Instrument Panel Wiring Diagram (3 Of 4)
G93F42403Courtesy of GENERAL MOTORS CORP.

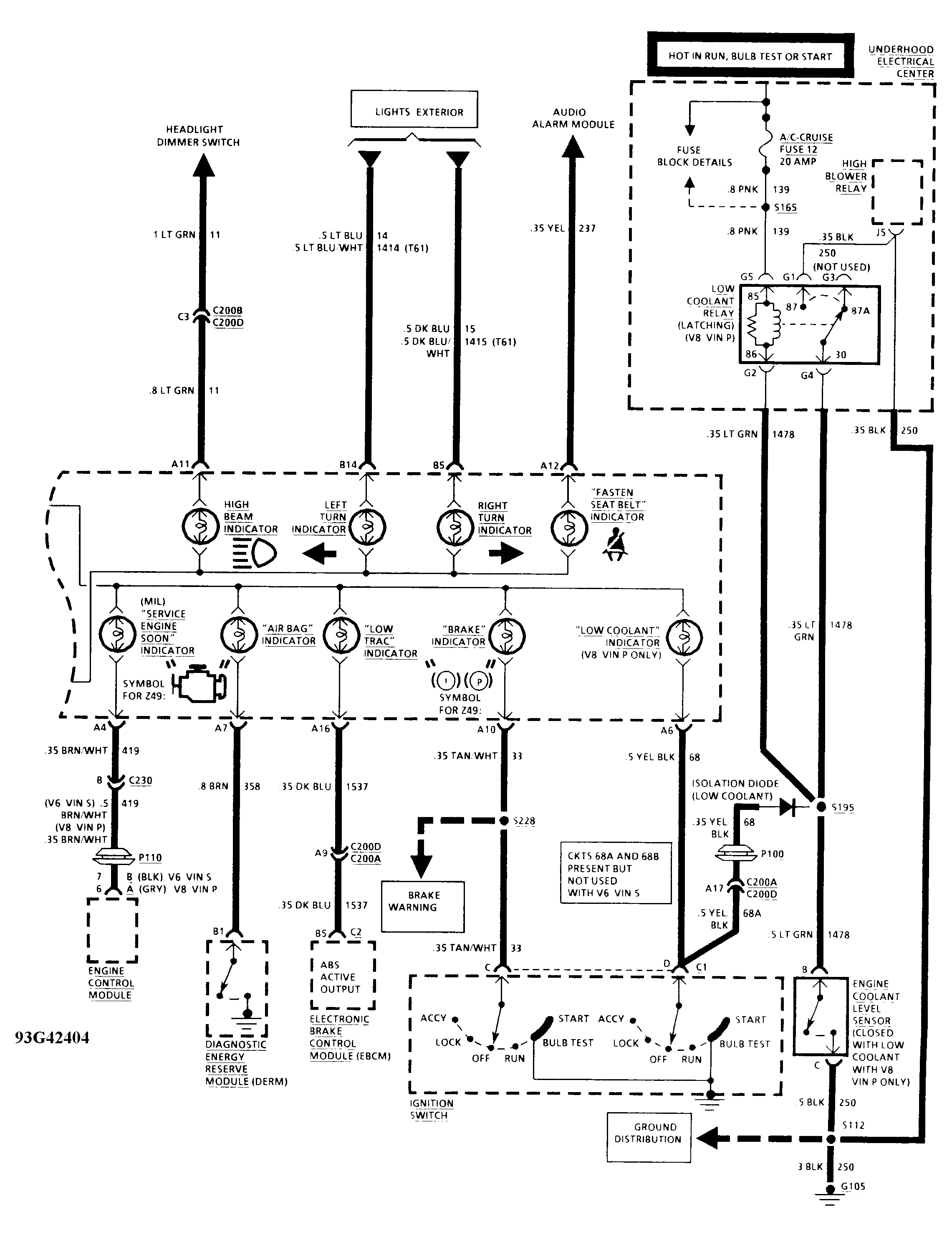

Fig 4: Analog Instrument Panel Wiring Diagram (4 Of 4)
G93G42404Courtesy of GENERAL MOTORS CORP.
