Installation (Eldorado, Riviera and Seville)

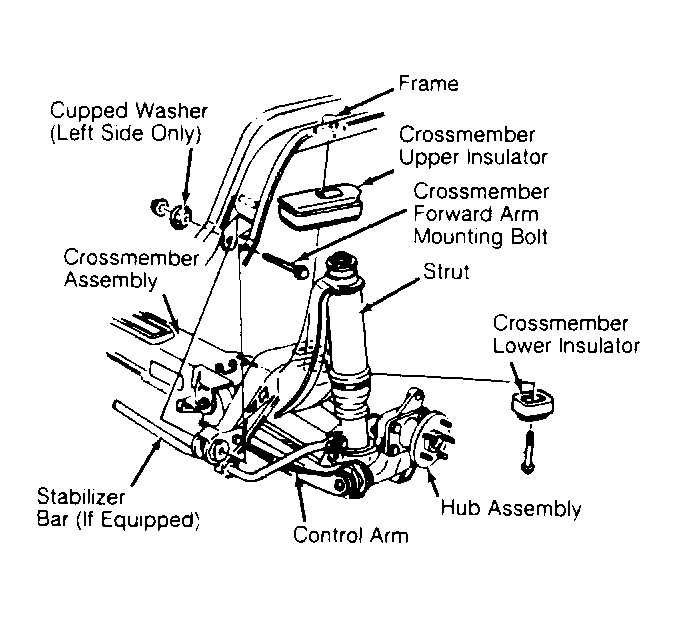

  1. Place crossmember below vehicle on jackstands. Install upper crossmember insulators on crossmember assembly. Lower vehicle onto crossmember assembly. See Figure . Align crossmember, ensuring brake lines, hoses and calipers are not damaged.
  2. Install crossmember forward arm bolts, nuts, washers, upper mounting bolts and insulators. See Figure . To complete installation, reverse removal procedure. Tighten bolts to specification. See appropriate TORQUE SPECIFICATIONS  table at the end of this article.
NOTE: Install both forward arm bolts with nuts on right side of arm. Cup-shaped washer is used only on left forward arm.
