Passenger Compartment Discriminating Sensor: Installation

To install, reverse removal procedure. Tighten attaching bolts to 84 INCH lbs. (9.5 N.m). Ensure system is functioning properly. See SYSTEM OPERATION CHECK.

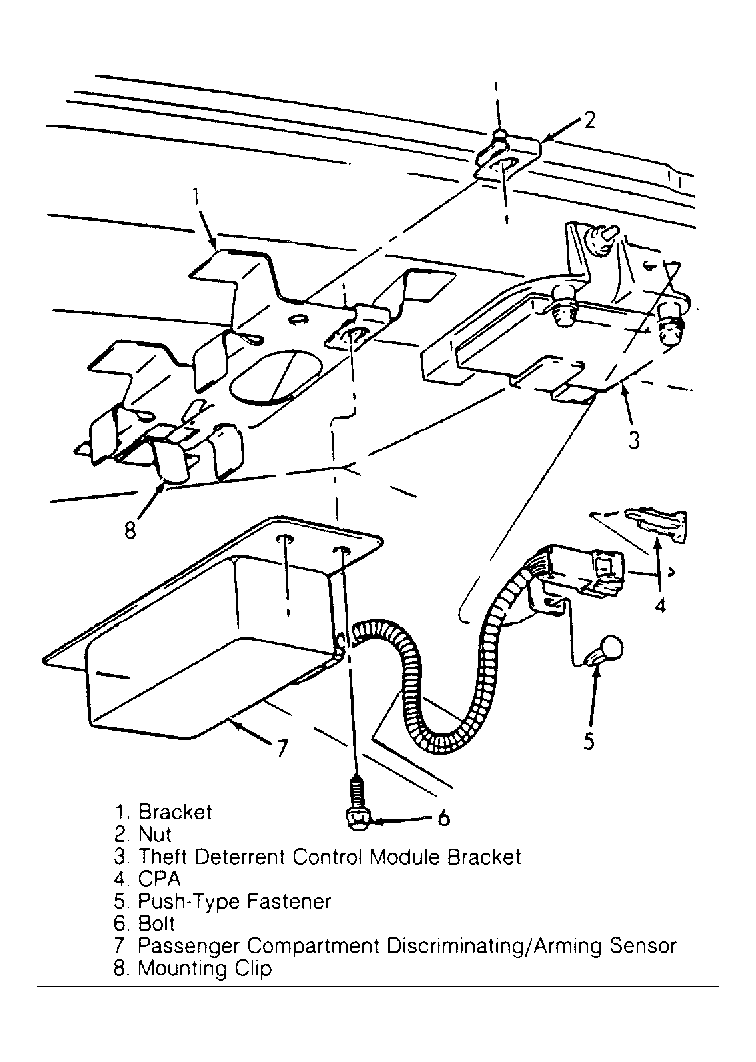

Fig 1: Removing Pass. Compartment Discriminating Sensor
G91G06873Courtesy of GENERAL MOTORS CORP.
