Action Taken
DERM turns on INFLATABLE RESTRAINT indicator light.
NOTE:

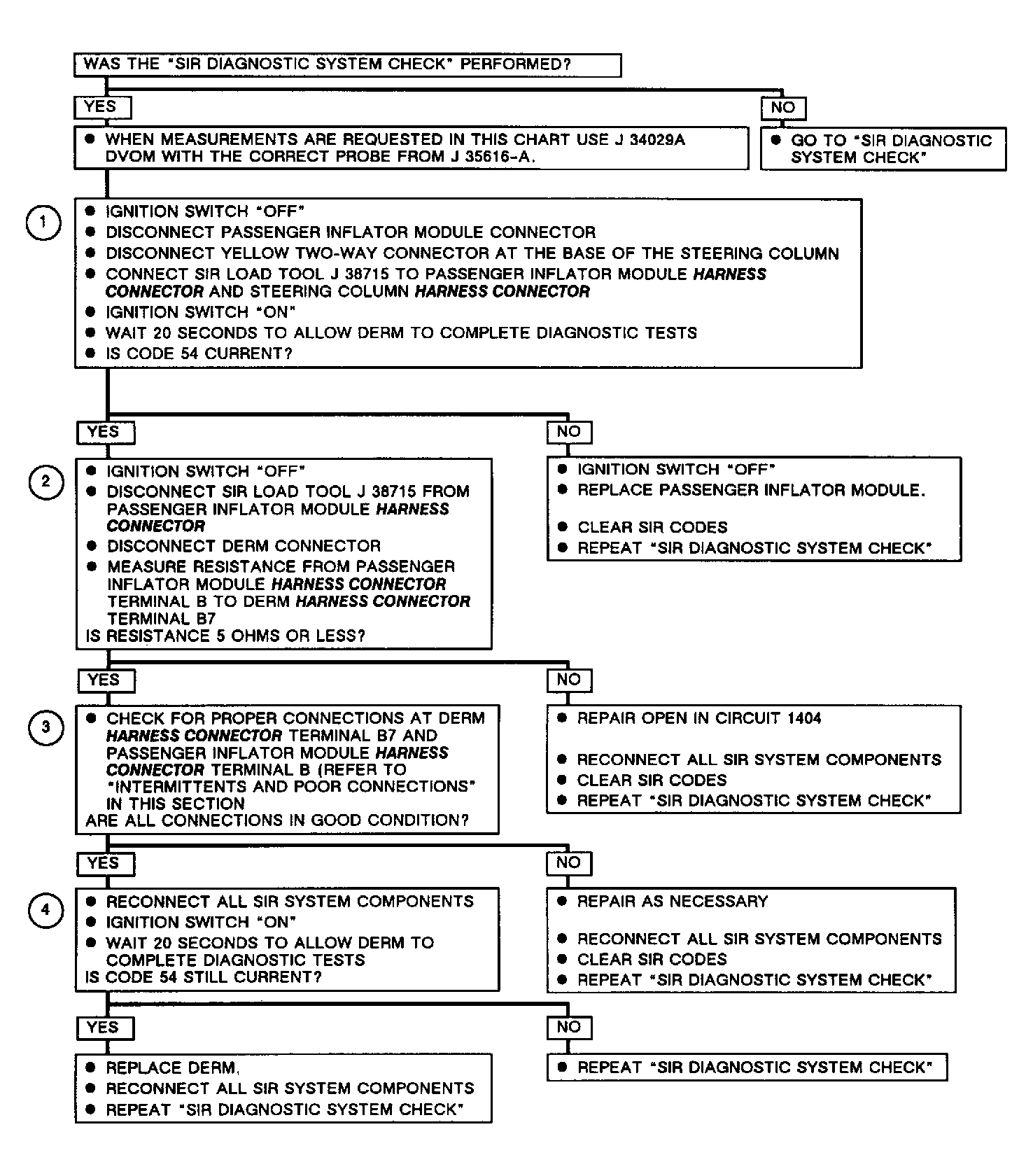

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
WARNING:
To avoid air bag deployment while troubleshooting the SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
- Checks if fault is in passenger inflator module or wiring harness.
- Checks for an open in PASS SENSE LOW circuit between DERM and passenger inflator module connector.
- Checks for correct terminal contact at DERM and passenger inflator module connector.
- Checks whether an improperly mated connector did not cause code to set.
