Action Taken
DERM turns on INFLATABLE RESTRAINT indicator light.
NOTE:

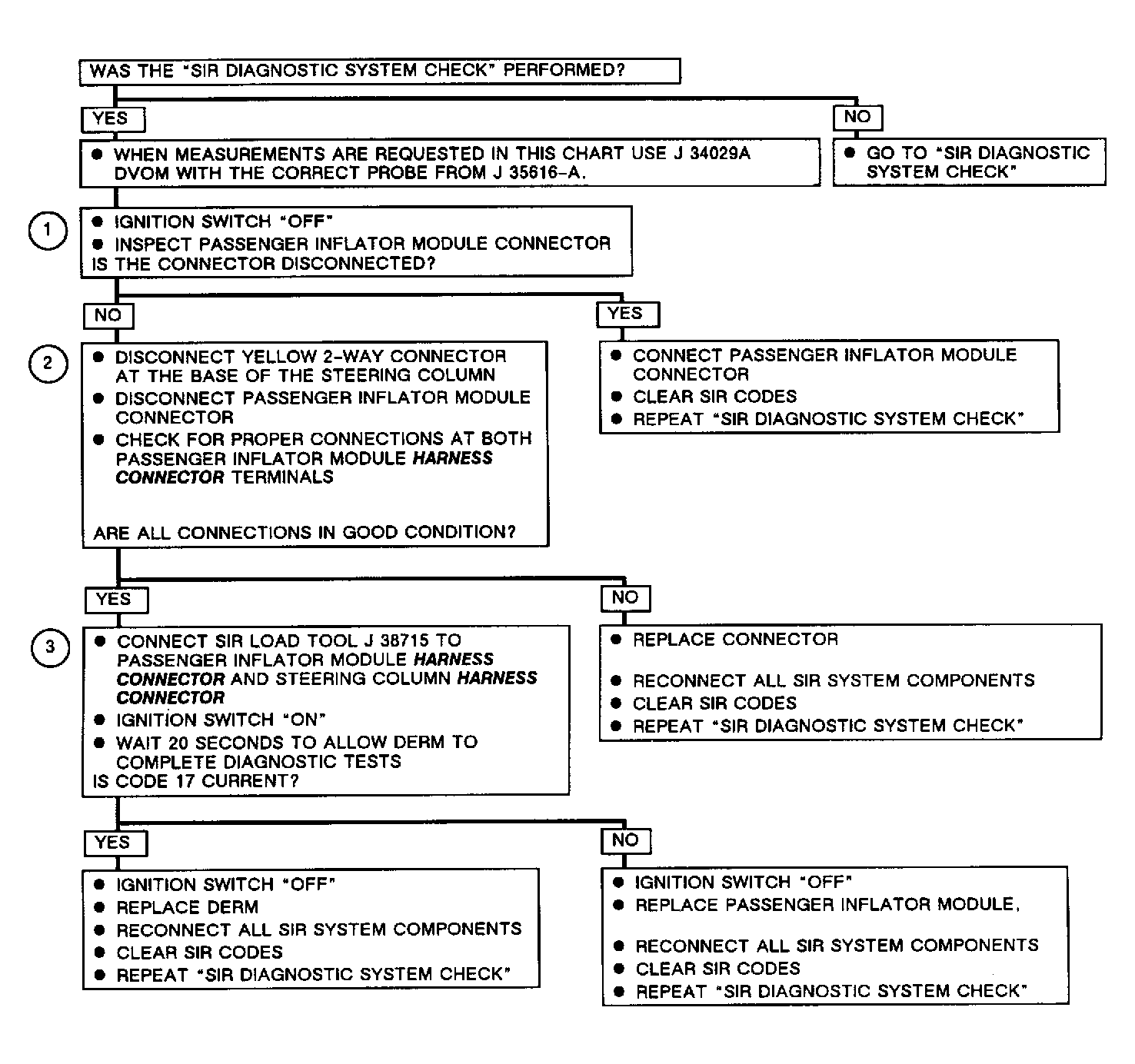

Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
WARNING:
To avoid air bag deployment while troubleshooting the SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
- Checks to ensure passenger inflator module connector is connected, as Code 17 sets when connector is apart.
- Checks for proper terminal contact at passenger inflator module connector.
- Checks if fault is in passenger inflator module.
