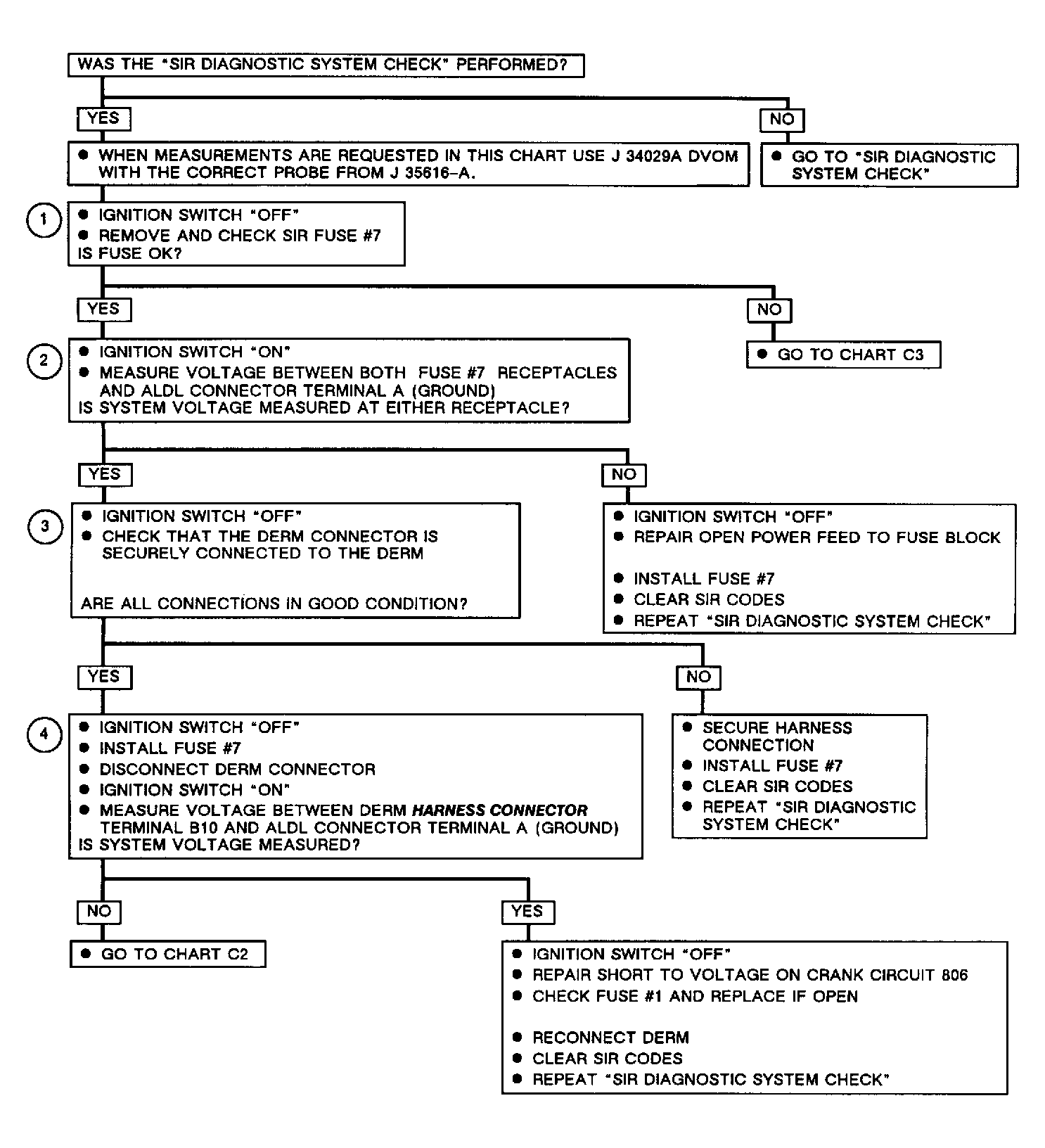

Chart C1 - Inflatable Restraint Indicator Comes On Steady: Description
When ignition is first turned on, system voltage is applied from fuse No. 6 to REDUNDANT INDICATOR IGNITION 1 input and INFLATABLE RESTRAINT indicator light, which is connected to light circuit (SIR INDICATOR) output. Fuse No. 7 applies system voltage to IGNITION 1 inputs. Diagnostic Energy Reserve Module (DERM) responds by flashing INFLATABLE RESTRAINT indicator 7 times.
When engine is cranked, system voltage is applied to DERM at CRANK input. DERM grounds light circuit until system voltage is removed from CRANK input. This results in a steady INFLATABLE RESTRAINT indicator during cranking. After engine is cranked, DERM will again flash INFLATABLE RESTRAINT indicator 7 times, with solid on of indicator during crank counting as one.
NOTE:
Test numbers refer to test numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
WARNING:
To avoid air bag deployment while troubleshooting the SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
- An open fuse No. 7 results in a loss of IGNITION 1 voltage at DERM. DERM will respond by grounding SIR INDICATOR output whenever ignition is on.
- Checks for an open in power feed circuit to SIR fuse No. 7.
- When DERM and SIR harness connector are disconnected, shorting bar between harness connector terminals A1 and B1 ground light circuit.
- Checks for a short to voltage in CRANK circuit.
