Action Taken

DERM turns on INFLATABLE RESTRAINT indicator light.

NOTE: Test numbers refer to numbers on diagnostic chart. For circuit number identification, see WIRING DIAGRAMS.
WARNING: To avoid air bag deployment while trouble shooting SIR system, only use test equipment specified in diagnostic charts. Under no circumstances should battery powered test equipment or test light be used. Carefully follow all instructions.
  1. Checks if fault is in 36VLR circuit between DERM and dual sensor or if fault is in dual sensor.

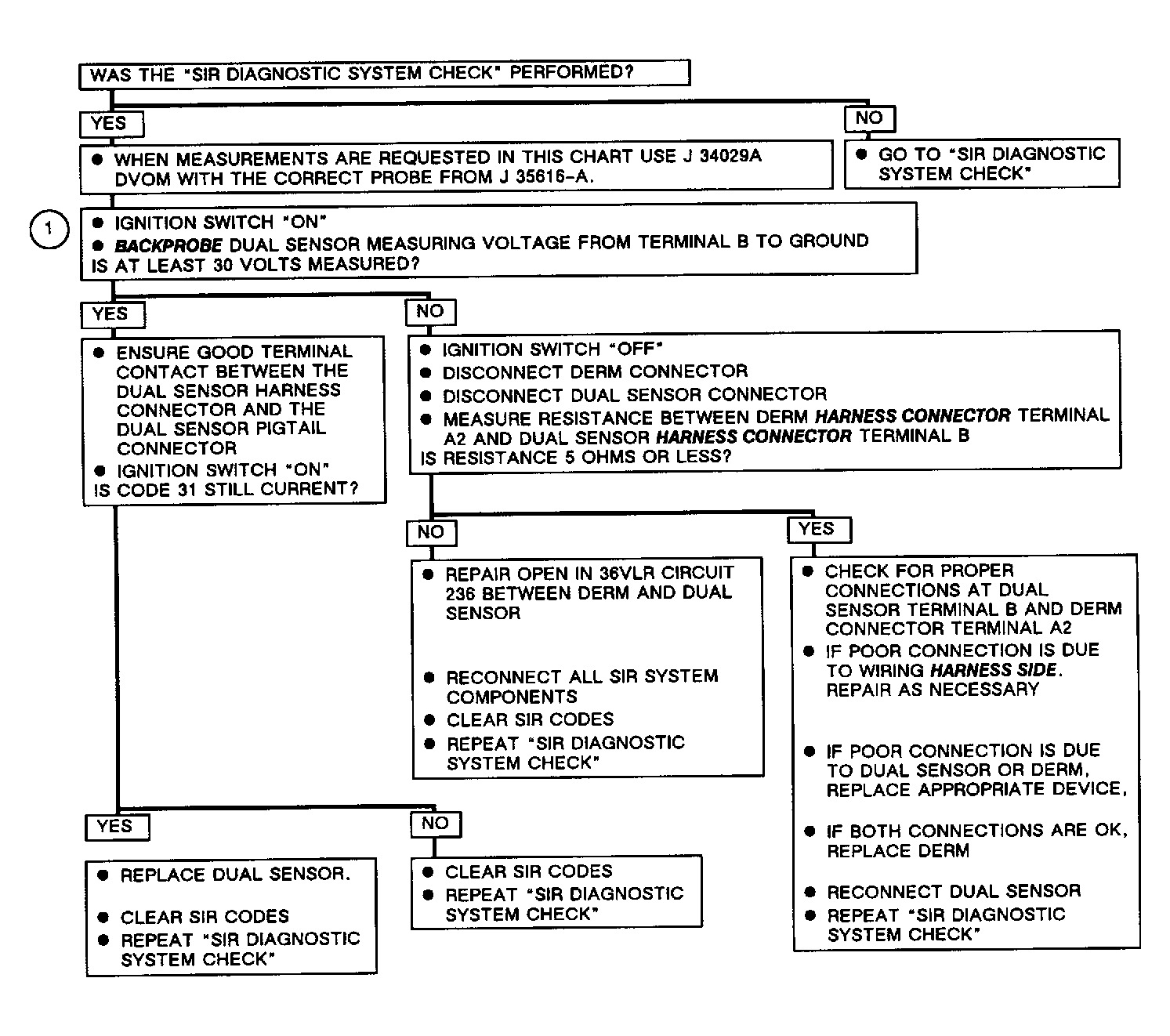

Fig 1: Code 31 - Open 36VLR To Deployment Loop
G92B24340Courtesy of GENERAL MOTORS CORP.
